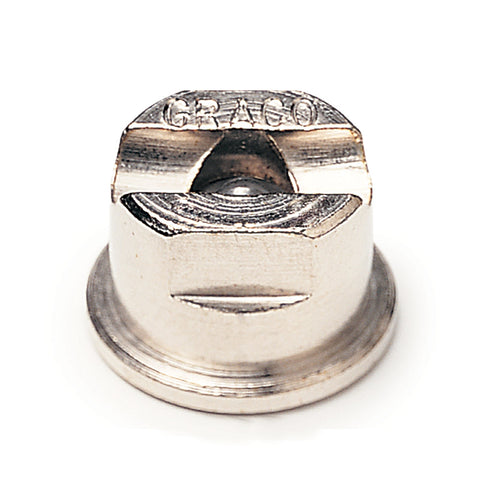

Graco | 269423 Contractor Flat Tip, 423
Graco
Model: 269423
The 423 Contractor Flat Tip creates an 8 to 10 inch fan pattern with a 0.023 inch orifice.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955638396 |
| Division | CED |
| Height | .6 IN | 1.524 CM |
| Length | 2.7 IN | 6.858 CM |
| Width | 5.25 IN | 13.335 CM |
| Volume | .005 FT3 | 0.000 M3 |
| Shipping Weight | .03 LBS | 0.014 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.023 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (psi) | 5000 |
| Maximum Working Pressure (bar) | 345 |
| For Use With | Silver Plus Airless Spray Gun |
| Maximum Fan Width (in) | 8 |
| Maximum Fan Width (mm) | 254 |
| Tip Type | Airless |
| Pattern Size (in) | 8 to 10 |
| Maximum Fan Width (cm) | 20 |
| Maximum Flow Rate (L/min) | 2.16 |
| Minimum Fan Width (in) | 8 |
| Minimum Fan Width (mm) | 203 |
| Pattern Size (mm) | 203.2 to 254 |
| Model | Contractor |
| Series | Flat Tip |
