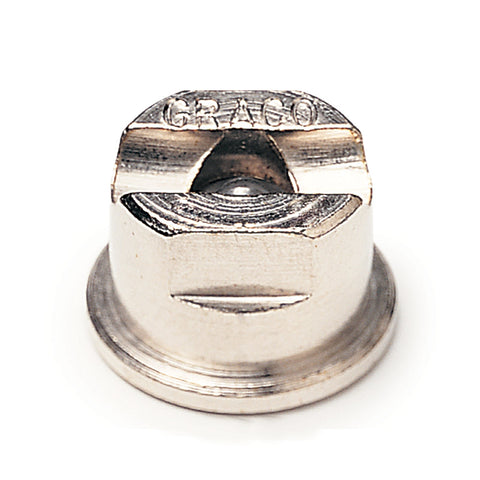

Graco | 269315 Contractor Flat Tip, 315
Graco
Model: 269315
The 315 Contractor Flat Tip is engineered for application on narrow surfaces. This flat tip features a 0.015 inch orifice and generates a fan spray pattern measuring 6 to 8 inches.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955334205 |
| Division | CED |
| Height | .6 IN | 1.524 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.25 IN | 13.335 CM |
| Volume | .005 FT3 | 0.000 M3 |
| Shipping Weight | .03 LBS | 0.014 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.015 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (psi) | 5000 |
| Maximum Working Pressure (bar) | 345 |
| For Use With | Silver Plus Airless Spray Gun |
| Maximum Fan Width (in) | 6 |
| Maximum Fan Width (mm) | 203 |
| Tip Type | Airless |
| Pattern Size (in) | 6 to 8 |
| Maximum Fan Width (cm) | 15 |
| Maximum Flow Rate (L/min) | 0.91 |
| Minimum Fan Width (in) | 6 |
| Minimum Fan Width (mm) | 152 |
| Pattern Size (mm) | 152.4 to 203.2 |
| Model | Contractor |
| Series | Flat Tip |
