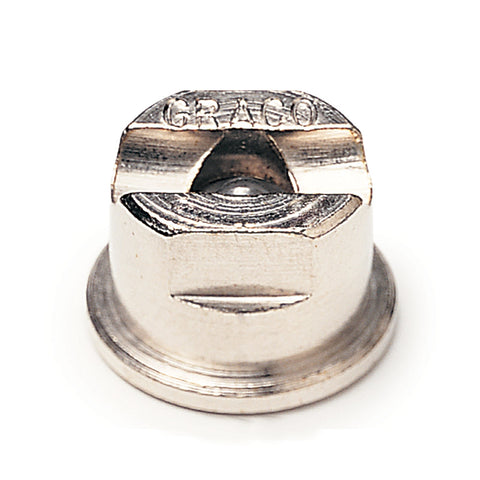

Graco | 269225 Contractor Flat Tip, 225
Graco
Model: 269225
The 225 Contractor Flat Tip is engineered for application on narrower surfaces and with thicker materials. This flat tip features a 0.025 inch orifice and generates a 4 to 6 inch fan pattern.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955400337 |
| Division | CED |
| Height | .6 IN | 1.524 CM |
| Length | 2.7 IN | 6.858 CM |
| Width | 5.25 IN | 13.335 CM |
| Volume | .005 FT3 | 0.000 M3 |
| Shipping Weight | .03 LBS | 0.014 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.025 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (psi) | 5000 |
| Maximum Working Pressure (bar) | 345 |
| For Use With | Silver Plus Airless Spray Gun |
| Maximum Fan Width (in) | 4 |
| Maximum Fan Width (mm) | 152 |
| Tip Type | Airless |
| Pattern Size (in) | 4 to 6 |
| Maximum Fan Width (cm) | 10 |
| Maximum Flow Rate (L/min) | 2.54 |
| Minimum Fan Width (in) | 4 |
| Minimum Fan Width (mm) | 102 |
| Pattern Size (mm) | 101.6 to 152.4 |
| Model | Contractor |
| Series | Flat Tip |
