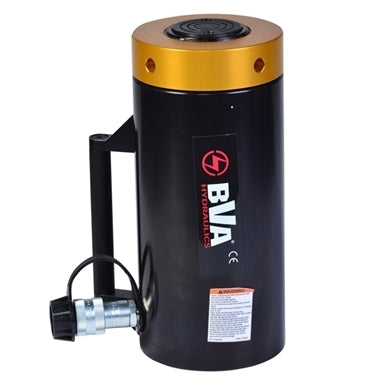

BVA | HULN10006, 100 Ton 6" Stroke, Lock Nut Aluminum Single Acting Cylinder
LOCK NUT ALUMINUM SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HULN10006
Features:
- Single acting cylinder with mechanical safety lock nut
- Designed to support loads without hydraulic pressure
- Overflow port prevents cylinders from over travel
- Load return
- Lightweight aluminum cylinder body
- Steel saddle
- Hard anodized rod to resist corrosion and rust
- Maximum working pressure: 10,000 psi / 700 bar
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Internal |
Oil Capacity (in³) |
Weight (Lbs) |
| 100 |
6 | HULN10006 | 20.68 | 10,000 |
121.50 | 60 |
Documents:
Lock Nut Aluminum Single Acting Cylinders Spec Sheet
Parts/Owner's Manual (30 thru 50 ton)
Parts/Owner's Manual (100 thru 150 ton)
