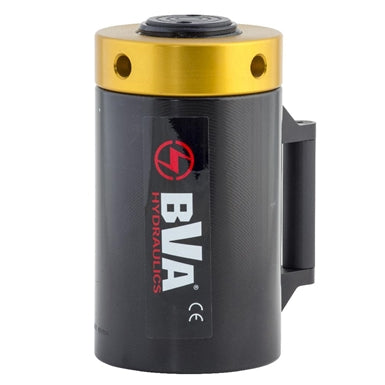

BVA | HULN10002, 100 Ton 2" Stroke, Lock Nut Aluminum Single Acting Cylinder

BVA | HULN10002, 100 Ton 2" Stroke, Lock Nut Aluminum Single Acting Cylinder

  • $3,347.86


LOCK NUT ALUMINUM SINGLE ACTING CYLINDER

BVA Hydraulics

Model: HULN10002

Features:

  • Single acting cylinder with mechanical safety lock nut
  • Designed to support loads without hydraulic pressure
  • Overflow port prevents cylinders from over travel
  • Load return
  • Lightweight aluminum cylinder body
  • Steel saddle
  • Hard anodized rod to resist corrosion and rust
  • Maximum working pressure: 10,000 psi / 700 bar
 Cylinder
Capacity
(tons)
Stroke
(in)
Model
Number
Cylinder
Effective
Area
(in²)

Internal
Pressure
at Capacity
(psi)

Oil
Capacity
(in³)
Weight
(Lbs)
100
2 HULN10002 20.68 10,000
40.51 43



Documents:

Lock Nut Aluminum Single Acting Cylinders Spec Sheet
Parts/Owner's Manual (30 thru 50 ton)

Parts/Owner's Manual (100 thru 150 ton)
