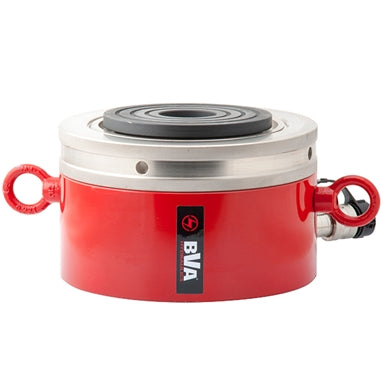

BVA | HLNF25002, 250 Ton 1.77" Stroke, Low Profile Lock Nut Single Acting Cylinder
LOW PROFILE LOCK NUT SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HLNF25002
Features:
- Single acting cylinder with mechanical safety lock nut
- Designed to support load for an extended period of time
- Low profile for confined spaces
- 5° tilting saddle is standard
- Maximum working pressure: 10,000 psi/700 bar
- Equipped with CH38F high flow coupler
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Oil Capacity (in³) |
Weight (Lbs) |
| 250 | 1.77 |
HLNF25002 | 56.27 | 99.70 | 154.60 |
Documents:
Low Profile Lock Nut Single Acting Cylinders Spec Sheet
Parts/Owner's Manual
