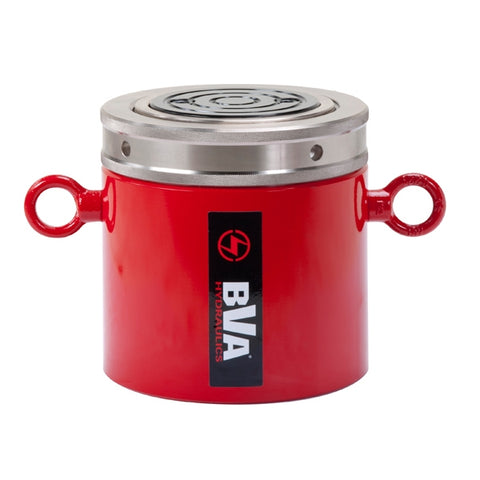

BVA | HLN20002, 200 Ton 1.97" Stroke, Lock Nut Single Acting Cylinder
LOCK NUT SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HLN20002
Features:
- Single acting cylinder with mechanical safety lock nut
- Designed to support load for extended periods without hydraulic pressure
- Overflow port prevents cylinders from over travel
- Load return
- Solid steel cylinder body
- Ideal for lifting and holding loads
- Chrome rods to resist corrosion and rust
- Maximum working pressure: 10,000 psi / 700 bar
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Oil Capacity (in³) |
Weight (Lbs) |
| 200 | 1.97 |
HLN20002 | 41.0 | 80.7 | 181.0 |
Documents:
Lock Nut Single Acting Cylinders Spec Sheet
Part/Owner's Manual
Compares To:
*For comparison purposes only. Products are not identical.
Enerpac HCL-2002
PowerTeam R2002L
Simplex RLN2002
