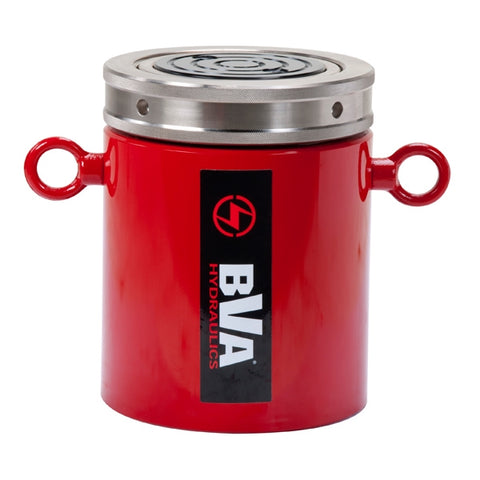

BVA | HLN15004, 150 Ton 3.94" Stroke, Lock Nut Single Acting Cylinder
LOCK NUT SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HLN15004
Features:
- Single acting cylinder with mechanical safety lock nut
- Designed to support load for extended periods without hydraulic pressure
- Overflow port prevents cylinders from over travel
- Load return
- Solid steel cylinder body
- Ideal for lifting and holding loads
- Maximum working pressure: 10,000 psi / 700 bar
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Oil Capacity (in³) |
Weight (Lbs) |
| 150 | 3.94 |
HLN15004 | 31.16 |
122.79 |
145.0 |
Documents:
Lock Nut Single Acting Cylinders Spec Sheet
Part/Owner's Manual
Compares To:
*For comparison purposes only. Products are not identical.
Enerpac HCL-1504
