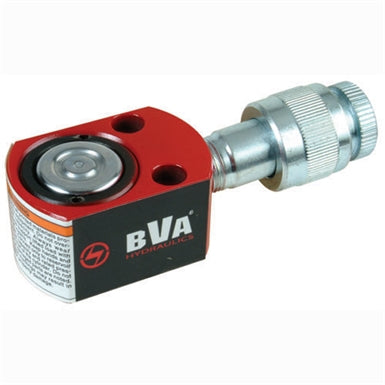

BVA | HF0503, 5 Ton 0.24" Stroke, Flat Body Single Acting Cylinder
FLAT BODY SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HF0503
Features:
- Made of high quality steel
- Extremely short collapsed height can be used with applications having almost no clearance at the lift point
- come with ⅜″ regular flow coupler CR38F
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Internal Pressure at Capacity (psi) | Oil Capacity (in³) |
Weight (Lbs) |
| 5 | 0.24 | HF0503 | 1.10 | 9,090 | 0.26 | 1.3 |
Documents:
Flat Body Single Acting Cylinders Spec Sheet
Parts/Owner's Manual
