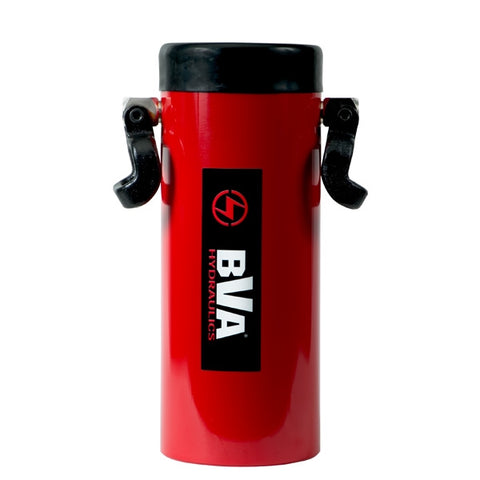

BVA | H10010, 100 Ton 10" Stroke, Single Acting Cylinder
GENERAL PURPOSE SINGLE ACTING CYLINDER
BVA Hydraulics
Model: H10010
Features:
- Internal plunger threads
- Snap-in grooved saddles
- Plunger wipers help seal out dirt
- Collar fixture threads
- Two base mounting holes
- Maximum working pressure: 10,000 psi/ 700 bar
- High strength steel construction
- High-flow couplers
- Collar thread protector
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Internal Pressure at Capacity (psi) |
Oil Capacity (in³) |
Weight (Lbs) |
| 100 |
10.24 |
H10010 | 20.58 |
9,718 |
210.74 |
153 |
Documents:
General Purpose Single Acting Cylinders Spec Sheet
Parts/Owner's Manual
Compares To:
*For comparison purposes only. Products are not identical.
Enerpac RC-1006
PowerTeam C1006C
Simplex R1006
