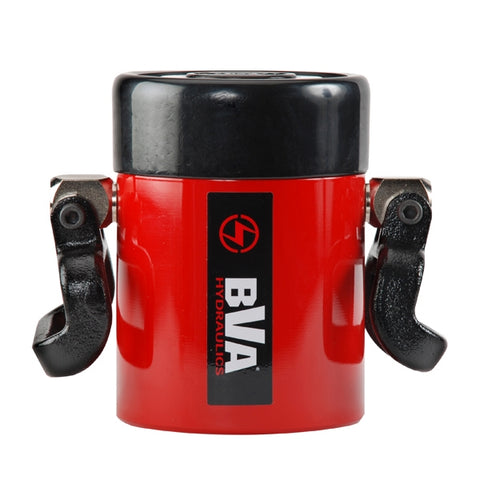

BVA | H10002A, 100 Ton 2" Stroke, Single Acting Cylinder
GENERAL PURPOSE SINGLE ACTING CYLINDER
BVA Hydraulics
Model: H10002A
Features:
- Internal plunger threads
- Snap-in grooved saddles
- Plunger wipers help seal out dirt
- Collar fixture threads
- Two base mounting holes
- Maximum working pressure: 10,000 psi/ 700 bar
- High strength steel construction
- High-flow couplers
- Collar thread protector
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Internal Pressure at Capacity (psi) |
Oil Capacity (in³) |
Weight (Lbs) |
| 100 |
2.01 |
H10002A | 20.58 |
9,718 |
41.34 |
66 |
Documents:
General Purpose Single Acting Cylinders Spec Sheet
Parts/owner's Manual
Compares To:
*For comparison purposes only. Products are not identical.PowerTeam C1002C
