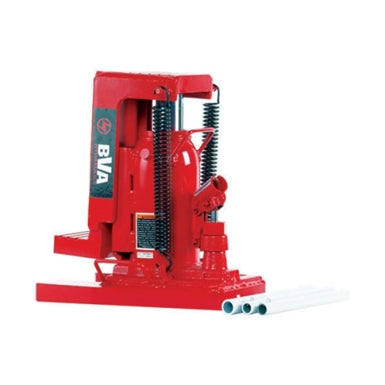

BVA | JBT15, 15 Ton, Magic Lift Toe Jack
MAGIC LIFT TOE JACK
BVA Hydraulics
Model: JBT15
--- Replaces discontinued model# J13300 ---
Features:
- Heat treated and chrome plated medium-carbon steel cylinder
- Chrome plated ram promotes longer seal life and optimum performance
- U.S.Patented Magic Lift Mechanism provides fast lift under no load operation
- U.S.Patented by-pass device protects hydraulic system from over traveling damage
- Good for rail road job site and applications of bridge construction.
|
Capacity (ton) |
Model Number |
Toe Saddle Height min/max (in) |
Head Saddle Height min/max (in) |
Hydraulic Lifting (in) |
Base Size (in) Length/width |
Weight (lbs) |
| 15 |
JBT15 |
1.1 / 6.6 | 13.1 / 18.6 | 5.5 | 12.5 x 10.8 | 116.6 |
