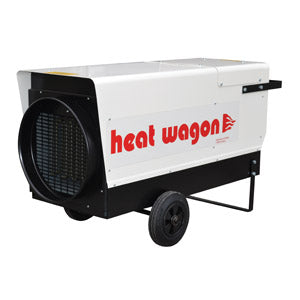

Heat Wagon | P6000 Electric Heater 204,700 BTU/Kw 60 Kw, 3 Phase
Heat Wagon Electric Heater
Heat Wagon Model: P6000
Description
The Heat Wagon P6000 is a high-capacity, portable electric heater designed for demanding jobsite or renovation environments where clean, fuel-free heat is essential. With a maximum output of up to 204,700 BTU/hr (≈ 60 kW) and robust airflow, this unit is ideal for industrial spaces, temporary buildings, construction sites, or any space requiring efficient, controllable heat via 3-phase electric power.
Features
-
Built-in thermostat enables automatic cycling and precise temperature control.
-
Direct-wiring to a terminal block—no need for expensive plug-in receptacles.
-
Ductable up to 50 ft for remote heating applications.
-
Forced-air blower delivering high airflow for effective air circulation.
-
Over-heat protection and rugged steel housing ensure durable, reliable operation.
-
Three power settings allow flexibility in heat output and energy consumption.
Technical Specifications:
| Specification | Details |
|---|---|
| Input (Max) | 204,700 BTU/hr (≈ 60 kW) |
| Alternate Inputs | 163,800 BTU/hr (≈ 48 kW); 81,900 BTU/hr (≈ 24 kW) |
| Electrical Rating | 480 V, 3-phase, 75 amps |
| Airflow (Fan) | 1,800 CFM |
| Temperature Rise | Up to 100 °F above ambient |
| Ducting Capability | Up to 50 feet |
| Dimensions (L × W × H) | 46″ × 20″ × 25″ |
| Weight | ~158 lb (approximate) |
Documents
-
Operator/Installation Manual — full wiring diagram, safety instructions, parts breakdown.
-
Specification Sheet (PDF) — includes detailed technical data for P4000 and related models.
