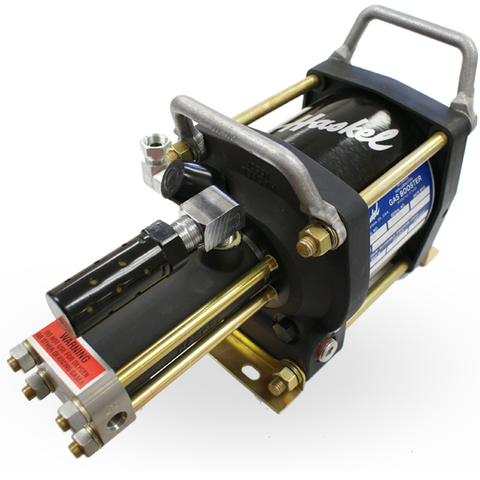

Haskel 86912 | Pneumatic Driven Oxygen Booster
Single Acting Single Stage, AG Series Oxygen Booster
Pneumatic Driven Gas Booster Features
- Reliable, easy to maintain, compact and robust
- Flexible and efficient
- No airline lubricator required
- Easy to apply automatic controls
- Hydrocarbon free – separation between air and gas sections
- Suitable for most gases
- Ability to stall at any predetermined pressure & hold the
fixed pressure without consuming power or generating heat
Technical Specifications:
| Model Number: | 86912 |
| Maximum Rated Gas Supply: | 7500 PSIG ; 517 BAR |
| Min. Gas Supply Pressure: | 100 PSIG ; 7 BAR |
| Maximum Rated Gas Outlet: | Inert Gas: 15000 PSIG ; 1034 BAR |
| Oxygen: 5000 PSIG ; 345 BAR | |
| Hydrogen: N/A PSIG ; N/A BAR | |
| Static Outlet Stall Pressure Formula: | 100 Pa |
| Piston Displacement Per Cycle: | 1.96 Cu. In. ; 32.1 ML |
| Gas Inlet/Outlet Connections: | Interchangeable 3-3/8" SAE or 1/4" - H/P (BuTech) Both Ports |
| Weight: | 35 LB |
Optional Modifications:
Number | Description
| C | Controls: airline filter, reg w/gauge and manual start/stop |
| C8 | On 5-3/4” drive 1/2 NPT |
| C13 | On 8” or 14” drive 3/4 NPT |
| 17860 | Electrical stroke counter provision (Includes BZE6-2RQ) micro switch |
| 25721 | Mechanical stroke counter-installed (6 digit) |
| 28881 | External pilot modification - for 5-3/4” series |
| 29125 | External pilot modification - for 8” or 14” series |
| 29376 | Three way cycling spool for 5-3/4” series and 14” series |
| 29702 | Single stroke modification for 5-3/4” series and 14” series pump |
| 50341 | 5-3/4” low permeability seals for CO2 gas service |
| 50606 | 8” low permeability seals for CO2 gas service |
| 51050 | Extreme service cycling modification for 5-3/4” series pump |
| 54312 | Extreme service cycling modification for 8” or 14” series |
| 56611 | Vent purge with 15 psi relief - single end models |
| 56611-2 | Vent purge with 15 psi relief for 5-3/4”, 8” or 14” series |
| 57875 | Panel with regulator for mounting remote APS |
| 54827 | Level II cleaning and certification of gas sections. |
| 59888 | Cycle Timer |
| 80862 | Viton air drive |
| 86337 | Extended life air drive seals |
| 82500 | ATEX Modification |
