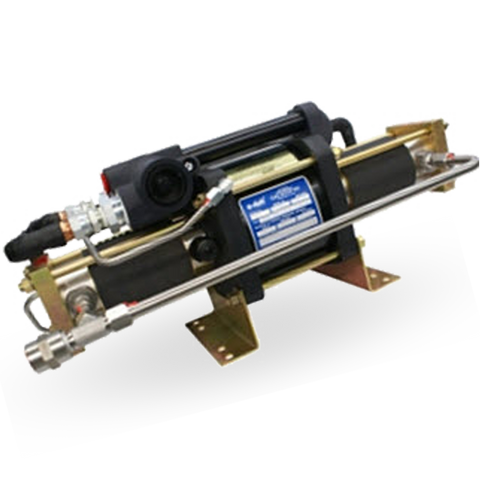

Haskel 52618 | Pneumatic Driven Oxygen Booster
Single Stage Double Acting, AGD Series Oxygen Booster
Pneumatic Driven Gas Booster Features
- Reliable, easy to maintain, compact and robust
- Flexible and efficient
- No airline lubricator required
- Easy to apply automatic controls
- Hydrocarbon free – separation between air and gas sections
- Suitable for most gases
- Ability to stall at any predetermined pressure & hold the
fixed pressure without consuming power or generating heat
Technical Specifications:
| Model Number: | 52618 |
| Maximum Rated Gas Supply: | 300 PSIG ; 21 BAR |
| Min. Gas Supply Pressure: | ATM PSIG ; ATM BAR |
| Maximum Rated Gas Outlet: | Inert Gas: 300 PSIG ; 21 BAR |
| Oxygen: 300 PSIG ; 21 BAR | |
| Hydrogen: N/A PSIG ; N/A BAR | |
| Static Outlet Stall Pressure Formula: | 1.5 Pa+Ps |
| Piston Displacement Per Cycle: | 60 Cu. In. ; 983.2 ML |
| Gas Inlet/Outlet Connections: | Inlet Port 3/4" NPT |
| Outlet Port 1/2" NPT | |
| Weight: | 44 LB |
Optional Modifications:
Number | Description
| C | Controls: airline filter, reg w/gauge and manual start/stop |
| C8 | On 5-3/4” drive 1/2 NPT |
| C13 |
On 8” or 14” drive 3/4 NPT
|
| 17860 | Electrical stroke counter provision (Includes BZE6-2RQ) micro switch |
| 25721 |
Mechanical stroke counter-installed (6 digit)
|
|
28881
|
External pilot modification - for 5-3/4” series
|
| 29125 |
External pilot modification - for 8” or 14” series
|
| 29376 |
Three way cycling spool for 5-3/4” series and 14” series
|
| 29702 |
Single stroke modification for 5-3/4” series and 14” series pump
|
| 50341 |
5-3/4” low permeability seals for CO2 gas service
|
| 50606 |
8” low permeability seals for CO2 gas service
|
| 51050 |
Extreme service cycling modification for 5-3/4” series pump
|
| 54312 |
Extreme service cycling modification for 8” or 14” series
|
| 56611 |
Vent purge with 15 psi relief - single end models
|
| 56611-2 |
Vent purge with 15 psi relief for 5-3/4”, 8” or 14” series
|
| 57875 |
Panel with regulator for mounting remote APS
|
| 54827 |
Level II cleaning and certification of gas sections.
|
| 59888 |
Cycle Timer
|
| 80862 |
Viton air drive
|
| 86337 |
Extended life air drive seals
|
| 82500 |
ATEX Modification
|
