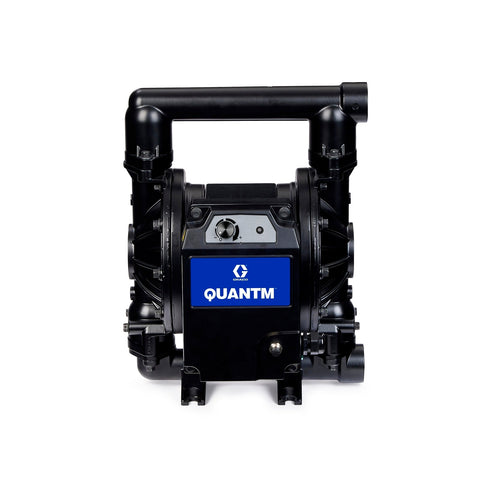

Model: TE80-0204
The QUANTM electric pump offers a significant advancement in pump technology. Its innovative electric motor design reduces operational costs and ensures consistent production line uptime. With various fluid path options and materials, QUANTM is suitable for most fluid applications. It serves as a reliable, direct replacement for less efficient pneumatic pumps or an ideal choice for new installations. The pump features a unique self-priming, seal-less design that provides smooth, steady flow. It is the only electric diaphragm pump on the market capable of stalling under pressure, minimizing downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter operation, improved efficiency, and exceptional dependability, contributing to energy savings and enhanced sustainability.
The all-aluminum fluid section is designed for abrasion resistance and offers mild corrosion resistance. This general-purpose electric pump provides up to 8 times more continuous torque at low speeds than conventional motors, making it an energy-efficient solution for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. Its high reliability minimizes downtime, and the plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid return on investment.
- Quiet operation contributes to a reduction in plant noise, improving employee safety and well-being.
- Smart pump control offers more precise flow set points and integrated I/O capabilities.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 1Ph motor with 15 ft flying leads.
- ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include a polypropylene seat, TPE (Hytrel) ball, TPE (Hytrel) diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946687767 |
| Division | PRO |
| Height | 33.8 IN | 85.852 CM |
| Length | 20 IN | 50.800 CM |
| Width | 32.5 IN | 82.550 CM |
| Volume | 12.7 FT3 | 0.360 M3 |
| Shipping Weight | 115 LBS | 52.163 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 15 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 19.6 |
| Series | i80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | -29 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | -20 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| configuration_code | QTD-ALFC4PPTPTPPTA100 |
