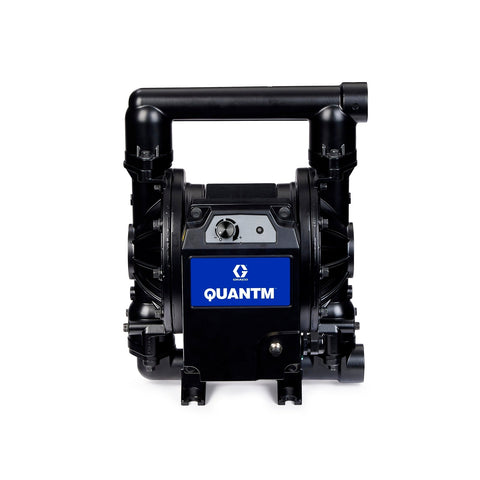

Graco | TE80-0017 QUANTM i80, 1.5"BSPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, TP Seat, AC Ball, TP Diaphragm
Graco
Model: TE80-0017
QUANTM is an electric pump designed to reduce operational costs and ensure production line reliability. It offers multiple fluid path options and materials of construction, making it suitable for most fluid applications. QUANTM can serve as a direct replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides consistent flow. It is the only electric diaphragm pump that stalls under pressure, minimizing downtime from clogged lines or closed valves. QUANTM is engineered for quieter operation, increased efficiency, and enhanced dependability, contributing to energy savings and sustainability goals. Consider QUANTM electric pumps to optimize your pump strategy and improve profitability.
The all-aluminum fluid section provides abrasion resistance and mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is energy-efficient. It is ideal for sump evacuation, evacuation of petroleum products (new and waste oils), and evacuation of solvents. This pump offers increased reliability to minimize downtime. Its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes. Not for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, providing a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a quick investment payback.
- Quiet operation reduces plant noise, improving employee safety and health.
- Smart pump control offers more accurate flow set points and includes built-in I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 3Ph motor with a 15 ft cord and NEMA L15-20 plug.
- Non-hazardous.
-
Materials of Construction
- Aluminum fluid section with BSPT end port.
- Internal components include TPE (Hytrel) seat, acetal ball, TPE (Hytrel) diaphragm, and TPE (Hytrel) manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946685916 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 19.6 |
| Series | i80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | -29 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | -20 |
| Fluid Section | Aluminum, End Port, BSPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| configuration_code | QTD-ALFC1TPACTP--A200 |
