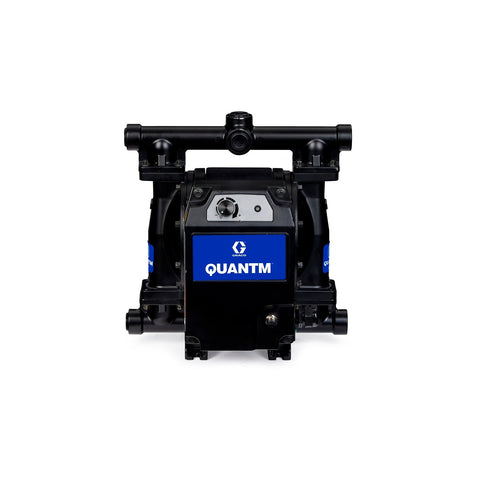

Model: TE30-0316
The QUANTM electric pump features a revolutionary electric motor design that reduces operational costs and ensures production line reliability. With multiple fluid path options and materials of construction, QUANTM is suitable for most fluid applications. It serves as a reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow. This is the only electric diaphragm pump on the market that stalls under pressure, reducing downtime from clogged lines or closed valves. QUANTM is engineered for quieter, more efficient, and dependable operation, offering energy savings that contribute to sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
The all-aluminum fluid section is designed for abrasion resistance and mild corrosion resistance. This general-purpose electric pump offers up to 8x more continuous torque at low speeds than conventional motors, making it an energy-saving solution for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability to minimize downtime, and its plug-and-play design allows easy integration into production lines without additional investment or infrastructure changes. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid investment payback.
- Quiet operation reduces plant noise levels, improving employee safety and health.
- Smart pump control offers more accurate flow set points and integrated I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 120 VAC 1Ph motor with 15 ft flying leads.
- CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946707595 |
| Division | PRO |
| Height | 20 IN | 50.800 CM |
| Length | 18 IN | 45.720 CM |
| Width | 16 IN | 40.640 CM |
| Volume | 3.329 FT3 | 0.094 M3 |
| Shipping Weight | 80 LBS | 36.287 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 12 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 15.94 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-ALFC6SSPTPSPTA100 |
| Weight (kg) | 28.1 |
