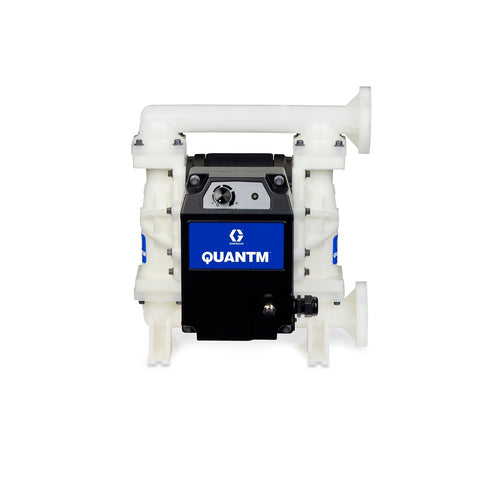

Graco | TE30-0286 QUANTM i30, 1"Flange, Polypropylene Electric Diaphragm Pump, 240 VAC 1Ph, AL Center, PP Seat, BN Ball, BN Diaphragm
Graco
Model: TE30-0286
The QUANTM electric pump offers a revolutionary electric motor design to reduce operational costs and ensure production line reliability. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a reliable replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump that stalls under pressure, reducing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and dependable operation, delivering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
Featuring a chemical-resistant polypropylene fluid section for high corrosion resistance, this electric pump efficiently handles fluid transfer applications involving most chemicals and detergents, sump evacuation, and high/low pH materials. With up to 8x more continuous torque at low speeds than conventional motors, it offers enhanced reliability to minimize downtime. The plug-and-play design allows for easy integration into any production line without additional investment or infrastructure changes.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- The compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick investment payback.
- Operates quietly, reducing plant noise and improving employee safety and health.
- Smart pump control offers more accurate flow set points and includes built-in I/O.
-
Efficient Electric Motor
- Features a powder-coated aluminum electric drive.
- Equipped with a 240 VAC 1Ph motor, a 15 ft cord, and an IEC 60320-C14 plug.
- Design is non-hazardous.
-
Materials of Construction
- Polypropylene fluid section with an end flange.
- Internal components include a Polypropylene seat, Buna-N ball, Buna-N diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946710380 |
| Division | PRO |
| Height | 20 IN | 50.800 CM |
| Length | 18 IN | 45.720 CM |
| Width | 16 IN | 40.640 CM |
| Volume | 3.329 FT3 | 0.094 M3 |
| Shipping Weight | 70 LBS | 31.751 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Flange |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Flange |
| Maximum Amperage (A) | 10 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 17.8 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Fluid Section | Polypropylene, End Flange |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-PPFC2PPBNBNPTP200 |
