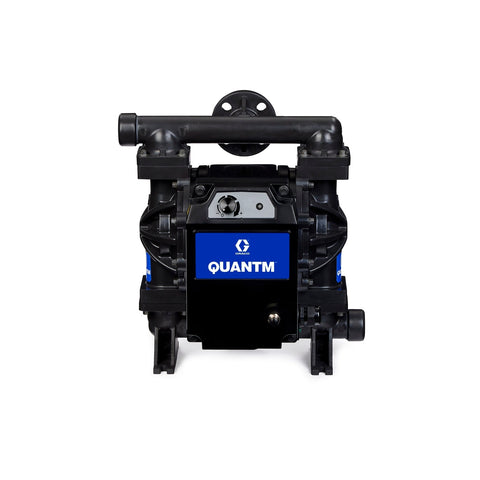

Graco | TE30-0273 QUANTM i30, 1"Flange, PVDF (Kynar) Electric Diaphragm Pump, 240 VAC 1Ph, AL Center, PV Seat, PT Ball, PS Diaphragm

Graco

Model: TE30-0273

The QUANTM electric pump features a revolutionary electric motor design for reduced operational costs and reliable production line operation. With multiple fluid path options and materials of construction, it is suitable for most fluid applications, serving as a dependable replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump on the market that stalls under pressure, preventing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and ultra-dependable operation, offering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.

This electric pump includes a polyvinylidene fluoride (PVDF) fluid section, offering high resistance to corrosion and abrasion from aggressive fluids and solvents. It effectively handles fluid transfer of concentrated chemicals or detergents, sump evacuation, and materials with high or low pH. With up to 8x more continuous torque at low speeds than conventional motors, this pump enhances reliability and minimizes downtime. Its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes.

• Revolutionary Design
  • Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature.
  • A compact and efficient electric drive eliminates the gearbox, providing a footprint comparable to a pneumatic diaphragm pump.
  • Achieve up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a quick investment payback.
  • Quiet operation reduces plant noise, improving employee safety and health.
  • Smart pump control offers more accurate flow set points and includes built-in I/O.
• Efficient Electric Motor
  • Powder-coated aluminum electric drive.
  • 240 VAC 1Ph motor with a 15 ft cord and IEC 60320-C14 plug.
  • Non-hazardous.
• Materials of Construction
  • PVDF (Kynar) fluid section with an end flange.
  • Internal components include PVDF (Kynar) seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.
