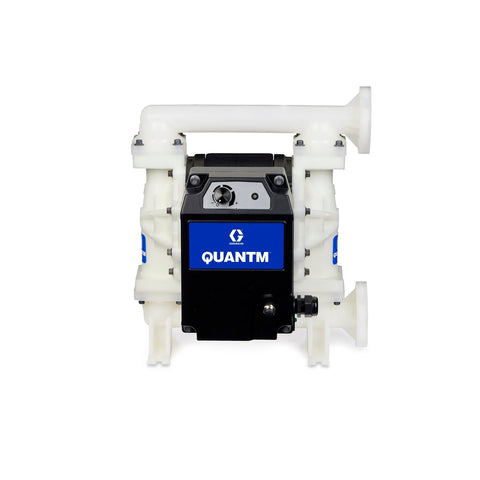

Graco | TE30-0260 QUANTM i30, 1"Flange, Polypropylene Electric Diaphragm Pump, 240 VAC 1Ph, AL Center, GE Seat, GE Ball, GE Diaphragm
Graco
Model: TE30-0260
The QUANTM electric pump features a revolutionary electric motor design that reduces operational costs and ensures production line reliability. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump that stalls under pressure, reducing downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and ultra-dependable operation, offering energy savings that support sustainability goals. Converting to a QUANTM electric pump can improve your bottom line.
This electric pump is designed with a chemical-resistant polypropylene fluid section for high corrosion resistance. It efficiently handles fluid transfer applications involving most chemicals and detergents, sump evacuation, and high and low pH materials. With up to 8x more continuous torque at low speeds than conventional motors, this pump offers enhanced reliability and minimizes downtime. Its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Provides up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a quick investment payback.
- Quiet operation reduces plant noise and improves employee safety and health.
- Smart pump control offers more accurate flow set points and built-in I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 1Ph motor with a 15 ft cord and IEC 60320-C14 plug.
- Non-hazardous.
-
Materials of Construction
- Polypropylene fluid section with an end flange.
- Internal components include Geolast seat, Geolast ball, Geolast diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946710168 |
| Division | PRO |
| Height | 19.5 IN | 49.530 CM |
| Length | 18 IN | 45.720 CM |
| Width | 15.5 IN | 39.370 CM |
| Volume | 3.143 FT3 | 0.089 M3 |
| Shipping Weight | 70 LBS | 31.751 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Flange |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Flange |
| Maximum Amperage (A) | 10 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 17.8 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Fluid Section | Polypropylene, End Flange |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-PPFC2GEGEGEPTP200 |
| Weight (kg) | 27.7 |
