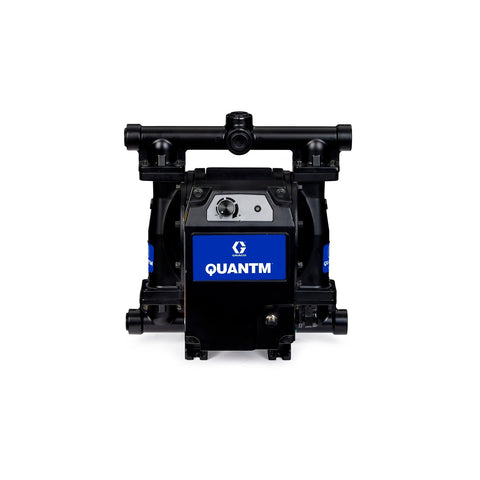

Model: TE30-0236
The QUANTM electric pump features a revolutionary motor design for reduced operational costs and reliable production line performance. It offers multiple fluid path options and materials of construction, making it suitable for most fluid applications. QUANTM serves as a highly reliable replacement for less efficient pneumatic pumps or for new installations. Its unique self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump that stalls under pressure, minimizing downtime from clogged lines or closed valves. QUANTM is engineered for quieter, more efficient, and ultra-dependable operation, delivering energy savings that support sustainability goals. It is designed to improve pump strategy and increase profitability through conversion to electric pump technology.
The all-aluminum fluid section is abrasion-resistant and offers mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is energy-efficient and ideal for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability to minimize downtime, and its plug-and-play design allows for easy integration into production lines without additional investment or infrastructure changes. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid investment payback.
- Quiet operation contributes to reduced plant noise and improved employee safety and health.
- Smart pump control offers more accurate flow set points and integrated I/O capabilities.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 1Ph motor with a 15 ft cord and IEC 60320-C14 plug.
- Non-hazardous.
-
Materials of Construction
- Aluminum fluid section with BSPT end port.
- Internal components include 316 stainless steel seat, 316 stainless steel ball, Santoprene diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946709933 |
| Division | PRO |
| Height | 19 IN | 48.260 CM |
| Length | 17.75 IN | 45.085 CM |
| Width | 15.5 IN | 39.370 CM |
| Volume | 3.023 FT3 | 0.086 M3 |
| Shipping Weight | 76.4 LBS | 34.654 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 10 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 15.94 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, BSPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-ALFC2SSSSSPPTA200 |
