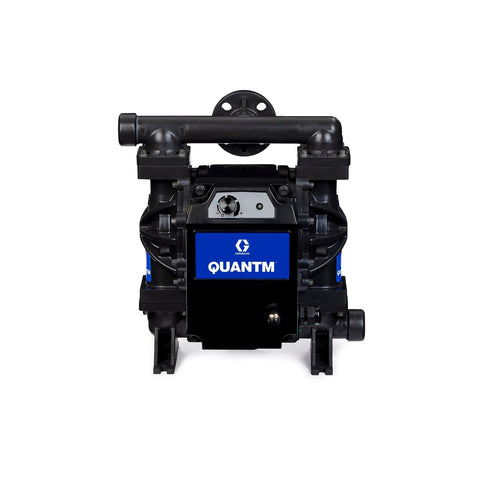

Graco | TE30-0105 QUANTM i30, 1"Flange, PVDF (Kynar) Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, SS Seat, PT Ball, PS Diaphragm

Graco

Model: TE30-0105

The QUANTM electric pump features a revolutionary electric motor design that reduces operational costs and ensures production line reliability. With multiple fluid path options and materials of construction, QUANTM is suitable for most fluid applications. It serves as a reliable replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump on the market that stalls under pressure, reducing downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and enhanced dependability, offering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.

This electric pump is equipped with a polyvinylidene fluoride (PVDF) fluid section, offering high resistance to corrosion and abrasion from aggressive fluids and solvents. It efficiently handles fluid transfer applications involving concentrated chemicals or detergents, sump evacuation, and materials with high or low pH. With up to 8 times more continuous torque at low speeds than conventional motors, this pump provides increased reliability and minimized downtime. Its plug-and-play design allows for easy integration into production lines without additional investment or infrastructure changes.

• Revolutionary Design
  • Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
  • A compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
  • Offers up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick investment payback.
  • Quiet operation reduces plant noise and improves employee safety and health.
  • Smart pump control enables more accurate flow set points and includes built-in I/O.
• Efficient Electric Motor
  • Powder-coated aluminum electric drive.
  • 120 VAC 1Ph motor with a 15 ft cord and NEMA 5-15 plug.
  • Non-hazardous.
• Materials of Construction
  • PVDF (Kynar) fluid section with an end flange.
  • Internal components include a 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and a PTFE manifold o-ring.

Operational Specifications

Technical Specifications
