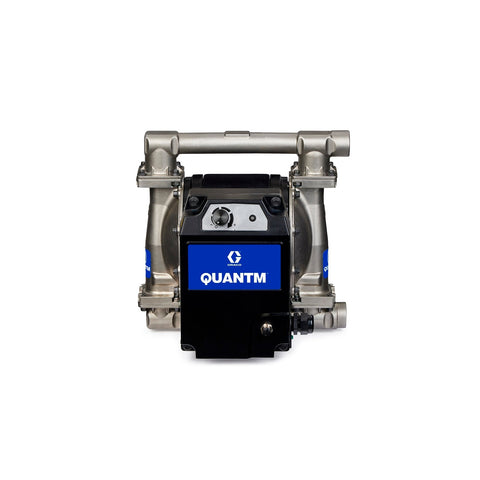

Graco | TE30-0026 QUANTM i30, 1"BSPT, Stainless Steel Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, SS Seat, SS Ball, PS Diaphragm
Graco
Model: TE30-0026
The QUANTM electric pump offers a revolutionary electric motor design for reduced operational costs and reliable production line performance. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a highly reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its unique self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump that stalls under pressure, minimizing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and ultra-dependable operation, delivering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
The stainless-steel fluid section provides high resistance to abrasion and corrosion. With up to 8x more continuous torque at low speeds than conventional motors, this electric pump is an energy-efficient solution with lower lifetime costs than less efficient pump technologies. It is ideal for applications involving highly abrasive materials, paints, solvents, or heated materials. This enhanced resilience reduces downtime, contributing to improved profitability. The pump offers higher reliability to minimize downtime and features a plug-and-play design for easy integration into production lines without additional investment or infrastructure changes.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- The compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick investment payback.
- Quiet operation reduces plant noise and enhances employee safety and health.
- Smart pump control offers more accurate flow set points and integrated I/O.
-
Efficient Electric Motor
- Features a powder-coated aluminum electric drive.
- Includes a 120 VAC 1Ph motor with a 15 ft cord and NEMA 5-15 plug.
- Non-hazardous.
-
Materials of Construction
- Stainless steel fluid section with BSPT end port.
- Internal components include 316 stainless steel seat, 316 stainless steel ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946276213 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 12 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 13.7 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Stainless Steel, End Port, BSPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-SSFC5SSSSPSPTS200 |
