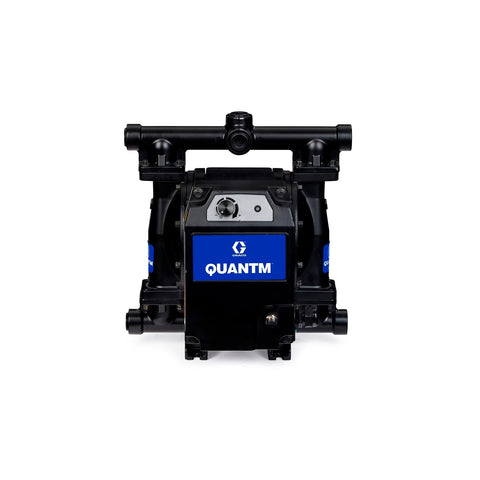

Model: TE30-0014
The QUANTM electric pump features a revolutionary electric motor design that reduces operational costs and ensures reliability for production lines. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump on the market that stalls under pressure, reducing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and ultra-dependable operation, offering energy savings that support sustainability goals. Converting to a QUANTM electric pump can improve operational efficiency and profitability.
The all-aluminum fluid section offers abrasion resistance and mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is energy-efficient and suitable for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability, minimizes downtime, and its plug-and-play design allows for easy integration into production lines without additional investment or infrastructure changes. It is not intended for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid investment payback.
- Operates quietly, reducing plant noise and improving employee safety and health.
- Smart pump control offers more accurate flow set points and integrated I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 120 VAC 1Ph motor with a 15 ft cord and NEMA 5-15 plug.
- Non-hazardous operation.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include Santoprene seat, Santoprene ball, Santoprene diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946276091 |
| Division | PRO |
| Height | 19.5 IN | 49.530 CM |
| Length | 18 IN | 45.720 CM |
| Width | 15.5 IN | 39.370 CM |
| Volume | 3.143 FT3 | 0.089 M3 |
| Shipping Weight | 72 LBS | 32.659 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 12 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 15.94 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-ALFC5SPSPSPPTA100 |
| Weight (kg) | 28.1 |
