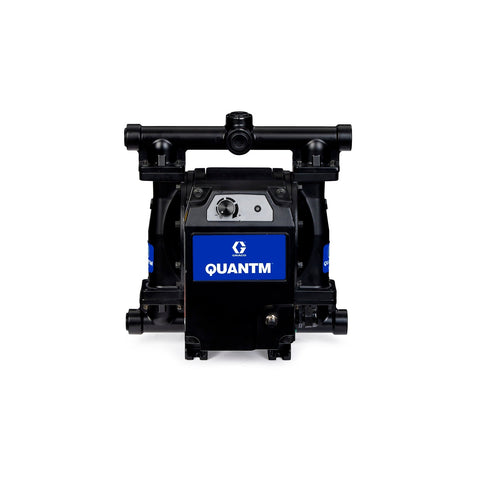

Model: TE30-0009
The QUANTM electric pump offers a revolutionary motor design for reduced operational costs and reliable production line operation. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a highly reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump that stalls under pressure, minimizing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and ultra-dependable operation, delivering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
The all-aluminum fluid section is designed for abrasion resistance and mild corrosion resistance. This general-purpose electric pump provides up to 8x more continuous torque at low speeds than conventional motors, making it an energy-saving solution ideal for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability to minimize downtime, and its plug-and-play design allows for easy integration into production lines without additional investment or infrastructure changes. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a quick investment payback.
- Quiet operation reduces plant noise and improves employee safety and health.
- Smart pump control offers more accurate flow set points and integrated I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 120 VAC 1Ph motor with a 15 ft cord and NEMA 5-15 plug.
- Non-hazardous.
-
Materials of Construction
- Aluminum fluid section with BSPT end port.
- Internal components include TPE (Hytrel) seat, acetal ball, TPE (Hytrel) diaphragm, and TPE (Hytrel) manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946276046 |
| Division | PRO |
| Height | 19.75 IN | 50.165 CM |
| Length | 17.75 IN | 45.085 CM |
| Width | 15.75 IN | 40.005 CM |
| Volume | 3.192 FT3 | 0.090 M3 |
| Shipping Weight | 75 LBS | 34.019 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 12 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 15.94 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | -29 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | -20 |
| Fluid Section | Aluminum, End Port, BSPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-ALFC5TPACTP--A200 |
| Weight (kg) | 28.1 |
