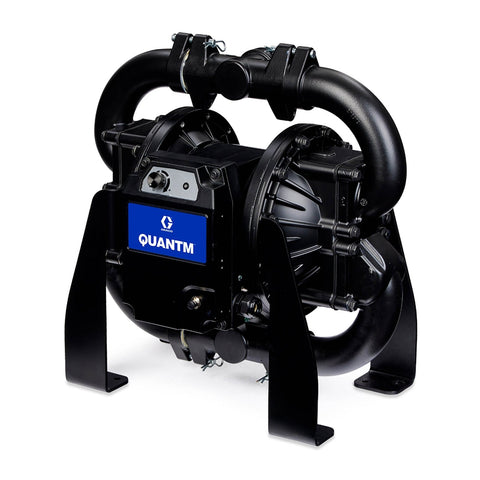

Model: TE120-0302
The QUANTM electric pump features a revolutionary electric motor design that reduces operational costs and ensures production line reliability. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump on the market that stalls against pressure, reducing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and enhanced dependability, offering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
The all-aluminum fluid section is designed for abrasion resistance and compatibility with mild chemicals. This general-purpose electric pump offers up to 8x more continuous torque at low speeds than conventional motors, making it an energy-efficient solution for sump evacuation, petroleum product evacuation (new and waste oils), and solvent applications. This pump delivers high reliability to minimize downtime, and its plug-and-play design allows for easy integration into production lines without significant investment or infrastructure changes.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- Graco's highly-efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick investment payback.
- Quiet operation reduces plant noise, improving employee safety and health.
- Smart pump control offers more accurate flow set points and integrated I/O.
-
Revolutionary Electric Motor
- Powder-coated aluminum efficient electric drive.
- 240 VAC 3? motor with 15 ft Flying Leads.
- CID1 Groups C,D,T4 Zone 1Ex d b IIB T4 Gb hazardous location approval.
-
Materials of Construction
- Aluminum fluid section with NPT center port.
- Internal components include Buna-N/SST seat, Buna-N Overmold 303 Stainless Steel Flapper valve, TPE (Hytrel) diaphragm, and Buna-N manifold seal.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 51 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 51 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 454 |
| Maximum Fluid Pressure (bar) | 4.1 |
| Maximum Fluid Pressure (kPa) | 414 |
| Maximum Fluid Pressure (psi) | 60 |
| Maximum Solid Size (in) | 1.8 |
| Maximum Solid Size (mm) | 45 |
| Model | QUANTM |
| Overall Height (in) | 23.3 |
| Series | i120 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | -29 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | -20 |
| Fluid Section | Aluminum, Center Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Fluid Passage Size (in) | 2 |
| Fluid Passage Size (mm) | 51 |
| configuration_code | QTE-ALFC3FB-BTPBNA1LP |
