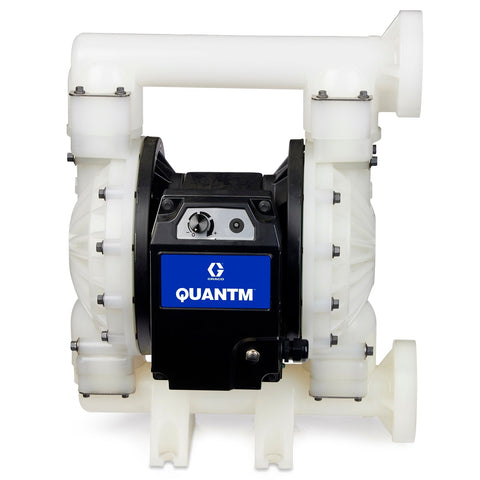

Graco | TE120-0219 QUANTM i120, 2"Flange, Cond Poly Electric Diaphragm Pump, 200-240 V, AL Center, PP Seat, PT Ball, PS Diaphragm

Graco

Model: TE120-0219

The QUANTM electric pump offers a revolutionary motor design that reduces operational costs and ensures reliable production line operation. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump that stalls under pressure, reducing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and dependable operation, delivering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.

This electric pump features a conductive polypropylene fluid section, offering high corrosion resistance and suitability for explosive atmospheres. It is designed for efficient fluid transfer of most chemicals and detergents, sump evacuation, and applications involving high and low pH materials. With up to 8x more continuous torque at low speeds than conventional motors, it provides enhanced reliability and minimizes downtime. The plug-and-play design allows for easy integration into production lines without additional investment or infrastructure changes.

• Revolutionary Design
  • Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature.
  • The compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
  • Achieve up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick investment payback.
  • Quiet operation reduces plant noise and improves employee safety and health.
  • Smart pump control offers more accurate flow set points and built-in I/O.
• Efficient Electric Motor
  • Powder-coated aluminum electric drive.
  • 240 VAC 1Ph motor with 15 ft flying leads.
  • ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval.
• Materials of Construction
  • Conductive polypropylene fluid section with end flange.
  • Internal components include polypropylene seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.

Operational Specifications

Technical Specifications
