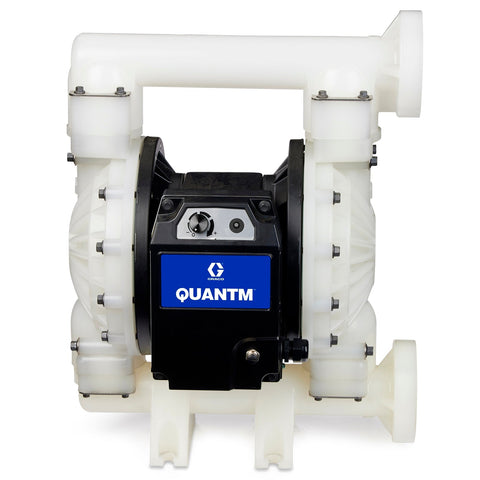

Graco | TE120-0030 QUANTM i120, 2"Flange, Cond Poly Electric Diaphragm Pump, 200-240 V, AL Center, PP Seat, PT Ball, PS Diaphragm

Graco

Model: TE120-0030

The QUANTM electric pump offers a revolutionary motor design for reduced operational costs and enhanced reliability, ensuring continuous production. Its multiple fluid path options and materials of construction make it suitable for most fluid applications, serving as a direct replacement for less efficient pneumatic pumps or for new installations. The self-priming, seal-less design provides consistent flow and is the only electric diaphragm pump capable of stalling under pressure, minimizing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter operation, improved efficiency, and exceptional dependability, contributing to energy savings and sustainability goals. Consider upgrading your pump strategy with the QUANTM electric pump to improve your bottom line.

Featuring a conductive polypropylene fluid section for high corrosion resistance and suitability for explosive atmospheres, this electric pump efficiently handles a range of fluid transfer applications. It is ideal for chemicals and detergents, sump evacuation, and materials with high or low pH. With up to 8x more continuous torque at low speeds than conventional motors, this pump offers increased reliability and reduced downtime. Its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes.

• Revolutionary Design
  • Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
  • The compact and efficient electric drive eliminates the gearbox, providing a footprint comparable to a pneumatic diaphragm pump.
  • Achieve up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a quick investment payback.
  • Quiet operation contributes to a reduction in plant noise and an improvement in employee safety and health.
  • Smart pump control offers more accurate flow set points and integrated I/O capabilities.
• Efficient Electric Motor
  • Powder-coated aluminum electric drive.
  • 240 VAC 3Ph motor with a 15 ft cord and NEMA L15-20 plug.
  • Non-hazardous.
• Materials of Construction
  • Conductive polypropylene fluid section with an end flange.
  • Internal components include a polypropylene seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.

Operational Specifications

Technical Specifications
