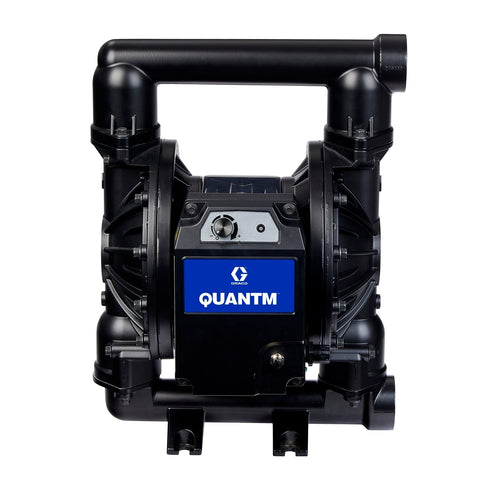

Graco | TE120-0011 QUANTM i120, 2"BSPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, PT Ball, PS Diaphragm
Graco
Model: TE120-0011
The QUANTM electric pump offers a significant advancement in pump technology. Its innovative electric motor design reduces operational costs and ensures consistent production line operation. With various fluid path options and material choices, QUANTM is suitable for most fluid applications, serving as a reliable replacement for less efficient pneumatic pumps or for new installations. The pump features a unique self-priming, seal-less design that provides smooth, steady flow. It is the only electric diaphragm pump on the market that stalls under pressure, minimizing downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and highly dependable operation, delivering energy savings that contribute to sustainability goals. Consider upgrading your pump strategy with the QUANTM electric pump to improve your bottom line.
The all-aluminum fluid section is designed for abrasion resistance and mild corrosion resistance. This general-purpose electric pump provides up to 8 times more continuous torque at low speeds than conventional motors, making it an energy-efficient solution for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability to minimize downtime, and its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid return on investment.
- Quiet operation reduces plant noise levels, improving employee safety and health.
- Smart pump control offers more precise flow set points and integrated I/O capabilities.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 3Ph motor with a 15 ft cord and NEMA L15-20 plug.
- Non-hazardous operation.
-
Materials of Construction
- Aluminum fluid section with BSPT end port.
- Internal components include a 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946322057 |
| Division | PRO |
| Height | 34 IN | 86.360 CM |
| Length | 20.5 IN | 52.070 CM |
| Width | 32.75 IN | 83.185 CM |
| Volume | 13.195 FT3 | 0.374 M3 |
| Shipping Weight | 135 LBS | 61.235 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 51 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 50.8 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 454 |
| Maximum Fluid Pressure (bar) | 4.14 |
| Maximum Fluid Pressure (kPa) | 414 |
| Maximum Fluid Pressure (psi) | 60 |
| Maximum Solid Size (in) | 0.25 |
| Maximum Solid Size (mm) | 6.4 |
| Model | QUANTM |
| Overall Height (in) | 23.6 |
| Series | i120 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, BSPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 2 |
| Fluid Passage Size (mm) | 51 |
| configuration_code | QTE-ALFC1SSPTPSPTA200 |
| Weight (kg) | 44.9 |
