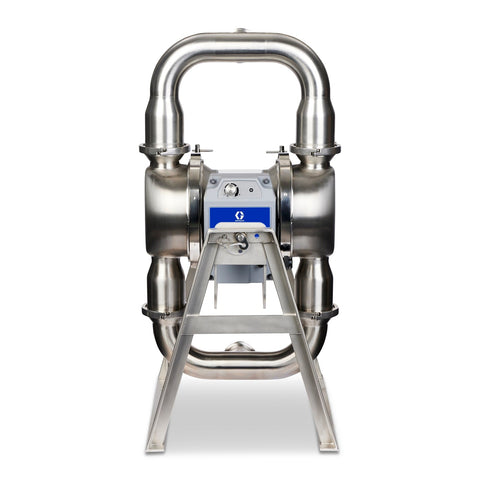

Graco | HE80-0208 QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, FL Seat, SP Diaphragm
Graco
Model: HE80-0208
The QUANTM electric pump is engineered for reduced operational costs and reliable production line performance. It offers multiple fluid path options and materials of construction, making it suitable for most fluid applications. It serves as a dependable replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides consistent flow. This electric diaphragm pump is unique in its ability to stall under pressure, minimizing downtime from clogged lines or closed valves. The QUANTM is designed for quieter operation, increased efficiency, and enhanced dependability, contributing to energy savings and sustainability goals. Consider upgrading your pump strategy with the QUANTM electric pump to improve your bottom line.
The QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design, replacing the traditional ball and seat check valve found in standard diaphragm pumps. This is essential for applications involving larger pieces of meat and poultry, fruit for bakery fillings and jarred fruit, and whole vegetables for soups or prepackaged meals. These pumps are equipped with a powerful electric motor delivering up to 8x more continuous torque at low speeds than conventional motors. The plug-and-play installation allows for easy replacement of existing pumps without additional investment or infrastructure modifications.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- The compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid investment payback.
- Quiet operation contributes to reduced plant noise and improved employee safety and health.
- Smart pump control offers more accurate flow set points and integrated I/O.
-
Efficient Electric Motor
- FEP coated aluminum electric drive.
- 240 VAC 1Ph motor with a 15 ft cord and NEMA L15-20 plug.
- Non-hazardous.
-
Materials of Construction
- 32 Ra surface finish 316L stainless steel fluid section with a tri-clamp center port.
- Internal components include a 316L stainless steel seat, 316L stainless steel Flapper ball, Santoprene diaphragm, and EPDM manifold o-ring.
- EN 3.1 material certification.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946697605 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38 |
| Fluid Outlet Size (mm) | 38 |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 1.2 |
| Maximum Solid Size (mm) | 30.5 |
| Model | QUANTM |
| Overall Height (in) | 32.55 |
| Series | h80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | 316L Stainless Steel, Center Port, Tri-Clamp |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Surface Finish | 32 Ra |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| Tri-Clamp Connection Size | 1.5 in. |
| configuration_code | QHD-HSFF1FL--SPEPSSASF31 |
| Pump Size (mm) | 38 |
| Pump Size (in) | 1.5 |
