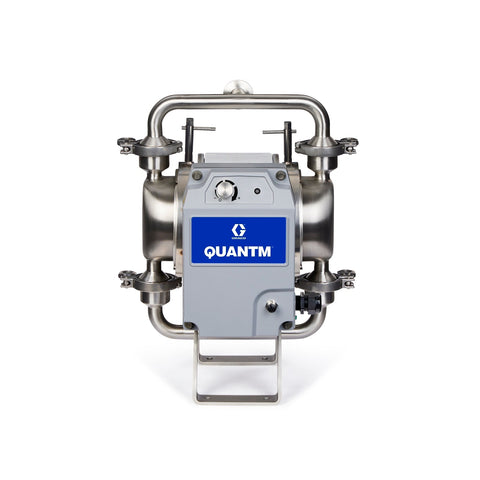

Model: HE30-0686
The QUANTM electric pump offers a significant advancement in pump technology. Its innovative electric motor design lowers operational costs and ensures consistent reliability for production lines. With various fluid path options and materials of construction, QUANTM is suitable for most fluid applications. It serves as a dependable replacement for less efficient pneumatic pumps or for new installations. The pump's unique self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump on the market that stalls under pressure, minimizing downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and exceptional dependability, contributing to energy savings and enhanced sustainability.
Featuring a 20 Ra surface finish and 316L construction, the QUANTM electric-operated double diaphragm (EODD) pumps are designed for pharmaceutical-grade manufacturing. These pumps offer a full electropolished finish and can be configured with USP Class VI approval, meeting certification requirements for pharmaceutical applications including biopharmaceuticals, medical lotions and creams, organic reagents, blood products, and alcohol and solvent transfer. The advanced electric motor delivers up to 8 times more continuous torque at low speeds than conventional motors. Its fast, plug-and-play installation allows for easy replacement of existing pumps without additional investment or infrastructure modifications.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature.
- The compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid return on investment.
- Quiet operation reduces plant noise levels, improving employee safety and well-being.
- Smart pump control offers more precise flow set points and integrated I/O capabilities.
-
Efficient Electric Motor
- FEP coated aluminum electric drive.
- 240 VAC 1Ph motor with a 15 ft cord and NEMA L15-20 plug.
- Non-hazardous.
-
Materials of Construction
- 20 Ra surface finish 316L stainless steel fluid section with tri-clamp center port.
- Internal components include a 316L stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and EPDM manifold o-ring.
- EN 3.1 material certification.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946434606 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25 |
| Fluid Outlet Size (mm) | 25 |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.42 |
| Maximum Solid Size (mm) | 10.7 |
| Model | QUANTM |
| Overall Height (in) | 19.43 |
| Series | h30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | 316L Stainless Steel, Center Port, Tri-Clamp |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Surface Finish | 20 Ra |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| Tri-Clamp Connection Size | 1 in. |
| configuration_code | QHC-PHFF1SSPTPSEPSSA0031 |
| Pump Size (mm) | 25 |
| Pump Size (in) | 1 |
