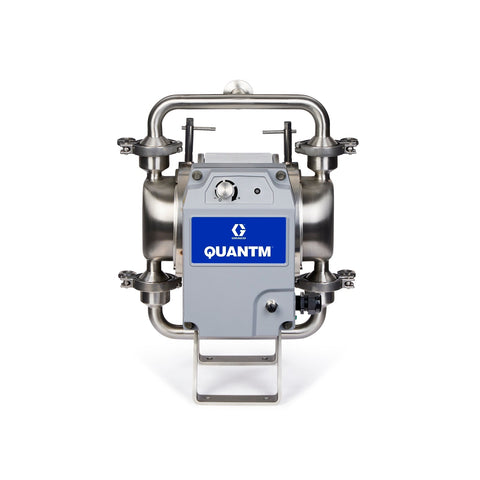

Graco | HE30-0520 QUANTM h30, 1"Tri-clamp, PH SST Electric Diaphragm Pump, 100-120 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm
Graco
Model: HE30-0520
The QUANTM electric pump features a revolutionary electric motor design that reduces operational costs and ensures reliable production line operation. With various fluid path options and materials of construction, QUANTM is suitable for most fluid applications. It serves as a highly reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump that stalls under pressure, minimizing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and ultra-dependable operation, offering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pumping strategy and improve profitability.
The QUANTM electric-operated double diaphragm (EODD) pumps are designed for pharmaceutical-grade manufacturing facilities focused on sustainability. These pumps offer a 20 Ra surface finish and 316L construction, with a full electropolished finish. They can be configured with USP Class VI approval for pharmaceutical applications, including biopharmaceuticals, medical lotions and creams, organic reagents, blood products, and alcohol and solvent transfer. The electric motor delivers up to 8x more continuous torque at low speeds than conventional motors. The fast, plug-and-play installation allows for easy replacement of existing pumps without additional investment or infrastructure changes.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a quick investment payback.
- Quiet operation reduces plant noise and enhances employee safety and health.
- Smart pump control enables more accurate flow set points and includes built-in I/O.
-
Efficient Electric Motor
- FEP coated aluminum electric drive.
- 120 VAC 1Ph motor with 15 ft flying leads.
- CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval.
-
Materials of Construction
- 316L stainless steel fluid section with a 20 Ra surface finish and tri-clamp center port.
- Internal components include a 316L stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and EPDM manifold o-ring.
- EN 3.1 material certification.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946291087 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25 |
| Fluid Outlet Size (mm) | 25 |
| Maximum Amperage (A) | 12 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.42 |
| Maximum Solid Size (mm) | 10.7 |
| Model | QUANTM |
| Overall Height (in) | 19.43 |
| Series | h30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | 316L Stainless Steel, Center Port, Tri-Clamp |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Surface Finish | 20 Ra |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| Tri-Clamp Connection Size | 1 in. |
| configuration_code | QHC-PHFF6SSPTPSEPSSA0031 |
| Pump Size (mm) | 25 |
| Pump Size (in) | 1 |
