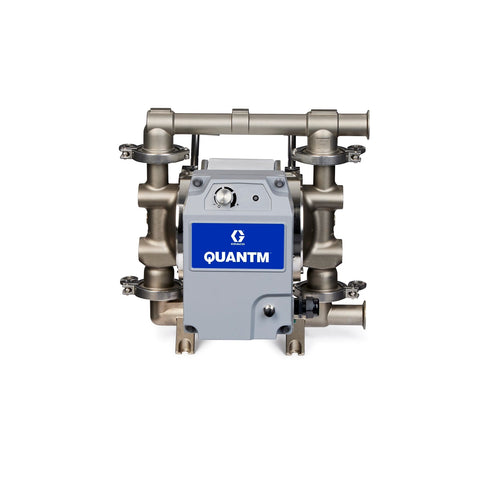

Graco | HE30-0037 QUANTM h30, 1" FG SST Electric Diaphragm Pump, 100-120 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm

Graco

Model: HE30-0037

The QUANTM electric pump features a revolutionary motor design that reduces operational costs and ensures production line reliability. With multiple fluid path options and material choices, it is suitable for most fluid applications. It serves as a reliable, direct replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, consistent flow. This is the only electric diaphragm pump on the market that stalls under pressure, minimizing downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and exceptional dependability, offering energy savings that support sustainability goals. Consider upgrading your pump strategy to a QUANTM electric pump to improve your bottom line.

Graco food-grade pumps are a popular choice for general food transfer. Featuring all-stainless-steel construction and a 125 Ra surface finish, the QUANTM food-grade electric pumps are certified for a wide range of food and beverage products, and meet requirements for some personal care applications. They are effective for dressings, sauces, oils, syrups, soaps, creams, and solvents, making them suitable for nearly any hygienic food-grade application. The powerful electric motor delivers up to 8 times more continuous torque at low speeds than conventional motors. The fast, plug-and-play installation allows for easy replacement of existing pumps without additional investment or infrastructure changes.

• Revolutionary Design
  • Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes an AutoPrime feature.
  • The compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to pneumatic diaphragm pumps.
  • Achieves up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid return on investment.
  • Quiet operation reduces plant noise, enhancing employee safety and well-being.
  • Smart pump control offers more precise flow set points and integrated I/O capabilities.
• Efficient Electric Motor
  • Features an FEP-coated aluminum electric drive.
  • Equipped with a 120 VAC 1Ph motor, a 15 ft cord, and a NEMA 5-15 plug.
  • Classified as non-hazardous.
• Materials of Construction
  • Includes a 125 Ra surface finish 316 stainless steel fluid section with a tri-clamp center port.
  • Internal components consist of a 316L stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and a PTFE manifold o-ring.
  • Comes with EN 3.1 material certification.

Operational Specifications

Technical Specifications
