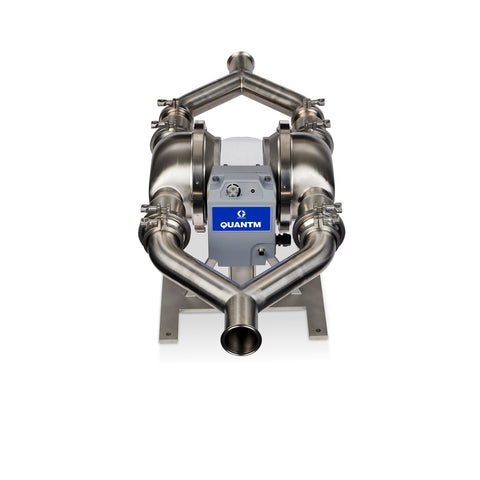

Graco | HE120-0719 QUANTM h120, 3"HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, FL Seat, SP Diaphragm
Graco
Model: HE120-0719
The QUANTM electric pump offers a significant advancement in pump technology. Its innovative electric motor design lowers operational costs and ensures consistent production line operation. With various fluid path material options, QUANTM is suitable for most fluid applications. It serves as a reliable, high-efficiency replacement for pneumatic pumps or an ideal component for new installations. The pump's self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump on the market that can stall under pressure, minimizing downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and enhanced dependability, contributing to energy savings and improved sustainability.
The QUANTM electric pumps designed for large particle applications feature a stainless-steel flapper check system, replacing the traditional ball and seat check valve found in standard diaphragm pumps. This design is essential for handling applications involving large pieces of meat and poultry, fruit for bakery fillings and jarred fruit, and whole vegetables for soups or prepackaged meals. The QUANTM electric pumps are equipped with a powerful new electric motor that delivers up to 8 times more continuous torque at low speeds than conventional motors. Its fast, plug-and-play installation allows for easy replacement of existing pumps without requiring additional investment or infrastructure modifications.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- The compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid return on investment.
- Quiet operation reduces plant noise levels, enhancing employee safety and well-being.
- Smart pump control offers more precise flow set points and integrated I/O capabilities.
-
Efficient Electric Motor
- FEP coated aluminum electric drive.
- 240 VAC 1Ph motor with a 15 ft cord and IEC 60320-C20 plug.
- Non-hazardous operation.
-
Materials of Construction
- 32 Ra surface finish 316L stainless steel fluid section with tri-clamp dual inlet/outlet.
- Internal components include a 316L stainless steel seat, 316L stainless steel flapper, Santoprene diaphragm, and EPDM manifold o-ring.
- EN 2.1 material certification.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946699289 |
| Division | PRO |
| Height | 29.5 IN | 74.930 CM |
| Length | 41 IN | 104.140 CM |
| Width | 34.5 IN | 87.630 CM |
| Volume | 24.115 FT3 | 0.683 M3 |
| Shipping Weight | 220 LBS | 99.790 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Size (mm) | 76 |
| Fluid Outlet Size (mm) | 76 |
| Maximum Amperage (A) | 15 |
| Maximum Flow Rate (L/min) | 454 |
| Maximum Fluid Pressure (bar) | 4.14 |
| Maximum Fluid Pressure (kPa) | 414 |
| Maximum Fluid Pressure (psi) | 60 |
| Maximum Solid Size (in) | 2.46 |
| Maximum Solid Size (mm) | 62.5 |
| Model | QUANTM |
| Overall Height (in) | 19.9 |
| Series | h120 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | 316L Stainless Steel, Tri-Clamp, Dual Inlet/Outlet |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Surface Finish | 32 Ra |
| Fluid Passage Size (in) | 3 |
| Fluid Passage Size (mm) | 76 |
| Tri-Clamp Connection Size | 3 in. |
| configuration_code | QHF-HSFF2FL--SPEPSSGSF21 |
| Weight (kg) | 77.1 |
| Pump Size (mm) | 76 |
| Pump Size (in) | 3 |
