Graco | HE120-0692 QUANTM h120, 3"HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, FL Seat, PS Diaphragm

Graco

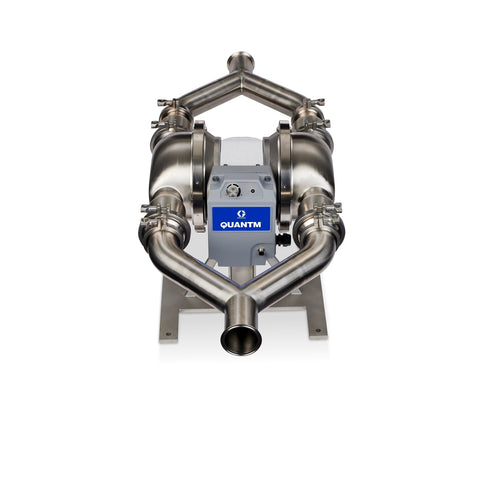

Model: HE120-0692

The QUANTM electric pump offers a revolutionary electric motor design to reduce operational costs and ensure production line reliability. With multiple fluid path options and construction materials, it is suitable for most fluid applications. It serves as a reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its unique self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump on the market that stalls under pressure, reducing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and dependable operation, delivering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve your bottom line.

The QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design, replacing the traditional ball and seat check valve found in standard diaphragm pumps. This design is critical for applications involving large meat and poultry pieces, fruit for bakery fillings and jarred fruit, and whole vegetables for soups or prepackaged meals. QUANTM electric pumps are equipped with a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. The fast, plug-and-play installation allows for easy replacement of existing pumps without additional investment or infrastructure modifications.

• Revolutionary Design
  • Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
  • The compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
  • Achieves up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick investment payback.
  • Operates quietly, reducing plant noise and improving employee safety and health.
  • Smart pump control offers more accurate flow set points and integrated I/O.
• Efficient Electric Motor
  • Features an FEP coated aluminum electric drive.
  • Includes a 240 VAC 1Ph motor with a 15 ft cord and NEMA L15-20 plug.
  • Design is non-hazardous.
• Materials of Construction
  • Features a 32 Ra surface finish 316L stainless steel fluid section with tri-clamp dual inlet/outlet.
  • Internal components include a 316L stainless steel seat, 316L stainless steel flapper, PTFE/Santoprene 2-Piece diaphragm, and EPDM manifold o-ring.
  • Includes EN 3.1 material certification.

Operational Specifications

Technical Specifications
