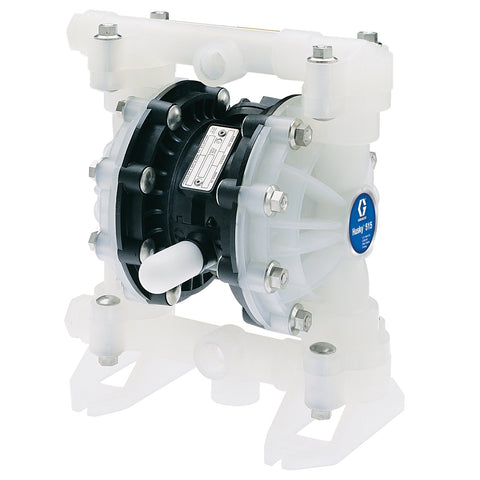

Graco | D5B336 Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, SS Seats, SS Balls & SP Diaphragm
Graco
Model: D5B336
The Husky 515 air-operated double diaphragm pump is equipped with a stall-free, low-pulsation air valve that ensures smooth and rapid changeovers.
Its bolt-through fluid cover design prevents leaks and enhances safety and reliability.
- Available with center and end porting options.
- Features no mechanical seals, eliminating potential fluid leaks or failures.
- Operates at less than 85 dBa, with an optional remote muffler for reduced noise levels.
- Includes an easily serviceable air valve and ball checks.
- Can operate with as little as 20 psi (1.4 bar, 0.14 MPa).
- Offers a split manifold option for pumping multiple fluids without mixing.
- Delivers fluid at a rate of up to 15 gpm (56.7 lpm).
- Features a reliable air valve designed for years of dependable performance.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955904088 |
| Division | PRO |
| Height | 12 IN | 30.480 CM |
| Length | 10.8 IN | 27.432 CM |
| Width | 9.6 IN | 24.384 CM |
| Volume | .72 FT3 | 0.020 M3 |
| Shipping Weight | 9 LBS | 4.082 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 1.27 |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Size (mm) | 12.7 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (L/min) | 57 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (cm) | 0.2383 |
| Maximum Solid Size (in) | 0.09375 |
| Maximum Solid Size (mm) | 2.4 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Overall Height (in) | 10.63 |
| Series | 515 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Air Pressure (MPa) | 0.7 |
| diaphragm_compatible_material | Santoprene |
| compressor_required | Yes |
