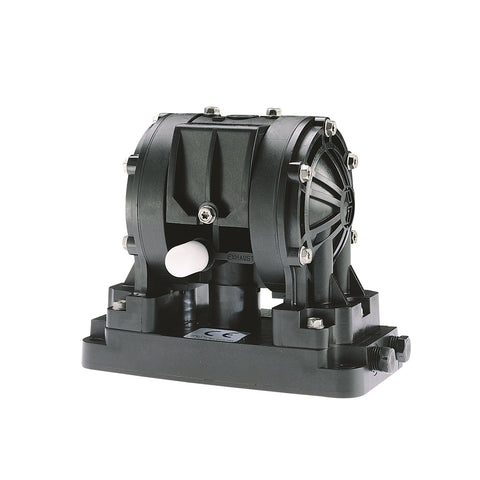

Graco | D11026 Husky 205 AC Pump, PP Center Section, AC Balls & SP Diaphragm
Graco
Model: D11026
The Husky 205 air-operated double diaphragm pump is designed with features to ensure efficient operation and cost savings.
This pump includes spring check valves for reliable priming, regardless of mounting position.
- Features true-formed PTFE and Santoprene diaphragms for improved performance.
- Spring-loaded checks enable operation in any orientation.
- Inlet and outlet ports are interchangeable.
- Offers a remote control option with an external controller.
- This is a 1/4-inch (6.35 mm) end-ported double diaphragm pump.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955941724 |
| Division | PRO |
| Height | 7.2 IN | 18.288 CM |
| Length | 7.2 IN | 18.288 CM |
| Width | 4.8 IN | 12.192 CM |
| Volume | .144 FT3 | 0.004 M3 |
| Shipping Weight | 3.75 LBS | 1.701 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 1/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 0.635 |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Size (mm) | 6.35 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 9 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 250 |
| Maximum Flow Rate (L/min) | 18.9 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (cm) | 0.15 |
| Maximum Solid Size (in) | 0.06 |
| Maximum Solid Size (mm) | 1.5 |
| Model | Husky |
| Overall Height (in) | 6 |
| Series | 205 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Air Pressure (MPa) | 0.7 |
| diaphragm_compatible_material | Santoprene |
| compressor_required | Yes |
