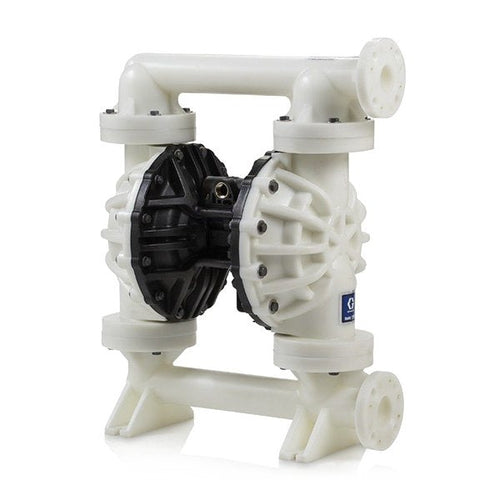

Graco | 653504 Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
Graco
Model: 653504
The Husky 2200 air-operated diaphragm pump includes a single-piece polypropylene center section for enhanced reliability and chemical compatibility. It features a patented, highly reliable modular air valve that can be serviced online. This diaphragm pump is constructed with a reinforced frame to improve durability and prevent fluid leakage.
- Improved air efficiency
- Highest fluid flow rate in its class
- Expanded material options for diverse applications
- Available with overmolded diaphragms for up to 5 times longer diaphragm life
- 2 in (50.8 mm) ANSI center and end-porting options
- High flow rate of 200 gpm (757 lpm) in a compact, portable design
- Fluid pressure up to 125 psi (8.6 bar, 0.86 MPa)
- Lube-free operation
- Available in polypropylene and PVDF
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955241534 |
| Division | PRO |
| Height | 39.6 IN | 100.584 CM |
| Length | 20.4 IN | 51.816 CM |
| Width | 31.2 IN | 79.248 CM |
| Volume | 14.59 FT3 | 0.413 M3 |
| Shipping Weight | 118 LBS | 53.524 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 1 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 5.08 |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 50.8 |
| Fluid Outlet Size (cm) | 5.08 |
| Fluid Outlet Size (mm) | 50.8 |
| Maximum Air Consumption (SCFM) | 140 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 125 |
| Maximum Flow Rate (L/min) | 757 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Fluid Pressure (kPa) | 860 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (cm) | 0.9525 |
| Maximum Solid Size (in) | 0.375 |
| Maximum Solid Size (mm) | 9.525 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°C) | 0 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Overall Height (in) | 30.3 |
| Series | 2200 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Air Pressure (MPa) | 0.86 |
| diaphragm_compatible_material | PTFE |
