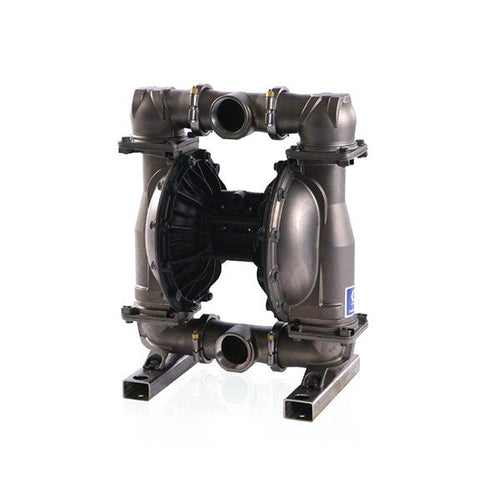

Graco | 652838 Husky 3300 (3 in. NPT) SS Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm
Graco
Model: 652838
The Husky 3300 air-operated diaphragm pump is equipped with a stall-free, low-pulsation air valve for smooth and rapid changeovers. Its one-piece center section prevents leaks and reduces maintenance requirements compared to other diaphragm pumps.
- Achieves up to 40% greater efficiency.
- Delivers the highest fluid flow rate in its category.
- Offers a diaphragm lifespan up to 5 times longer than other air-operated diaphragm pumps.
- Features an expanded material selection to accommodate a wide range of applications.
- Available in an ATEX configuration.
- Provides flow rates up to 300 gpm (1,135 lpm).
- Includes a modular, stall-resistant air valve design.
- A complete 3-inch family of diaphragm pumps is available with aluminum or polypropylene center sections.
- Constructed with heavy-duty materials for durability.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955649989 |
| Division | PRO |
| Height | 39.6 IN | 100.584 CM |
| Length | 20.4 IN | 51.816 CM |
| Width | 31.2 IN | 79.248 CM |
| Volume | 14.59 FT3 | 0.413 M3 |
| Shipping Weight | 284 LBS | 128.820 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 1 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 7.62 |
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Size (mm) | 76.2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 7.62 |
| Fluid Outlet Size (mm) | 76.2 |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 335 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 103 |
| Maximum Flow Rate (L/min) | 1136 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Fluid Pressure (kPa) | 860 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Solid Size (cm) | 1.27 |
| Maximum Solid Size (in) | 0.5 |
| Maximum Solid Size (mm) | 12.7 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°C) | 0 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Series | 3300 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Air Pressure (MPa) | 0.86 |
| diaphragm_compatible_material | Santoprene |
