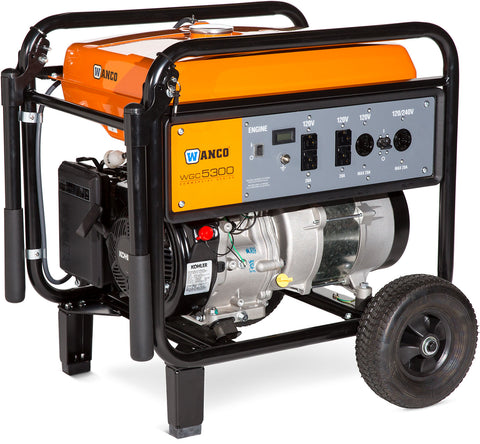

Wanco | WGC5300, 5300 Watt Portable Gas Generator, Kohler Engine
Wanco Portable Gas Generator, with Kohler Engine
Wanco Model: WGC5300
Features:
- 5,300 watts max. output
- Kohler Command PRO OHV engine
- Automatic voltage regulator (AVR)
- Large capacity steel fuel tank with fuel gauge
- 120V GFCI receptacles
- 240V twist-lock receptacle
- Hour meter
- Automatic low-oil shutdown
- Wheel kit with two flat-free tires and fold-down handles
- Heavy-duty frame
- Easy maintenance
- 3-year/2000-hour residential warranty
Technical Specifications:
PERFORMANCE
AC voltage
120/240 V
Max. output
5,300 W
Rated output
4,800 W
Max. current
44.2 A @ 120 V
22.1 A @ 240 V
Rated current
40 A @ 120 V
20 A @ 240 V
Frequency
60 Hz
Phase
Single
Current protection
GFCI
Dual-pole magnetic circuit breaker
ENGINE
Engine model
Kohler Command PRO CH395
Engine type
4-cycle OHV
Ignition system
Electronic
Starting system
Recoil
Output power
9.5 hp @ 3600 rpm
Displacement
277 cc
Noise level @ 23 ft. (7m)
72 dBA
Continuous run time
9.3 hr @ 100% load
Fuel capacity
8 gal. (30 L)
Fuel type
Gasoline
Standards compliance
EPA, CARB
RECEPTACLES
Two 120 Vac 20A GFCI duplex
One 120 Vac 30A twist-lock
One 240 Vac 30A twist-lock
PHYSICAL
Dimensions, L × W × H
30 × 29 × 29 in (76 × 74 × 74 cm) with wheel kit, handles down
Dry weight
215 lb (98 kg)
