Wanco | WGC3800, 3800 Watt Portable Gas Generator, Kohler Engine

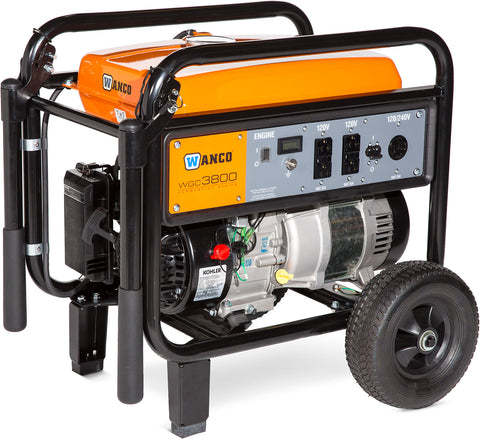

Wanco Portable Gas Generator, with Kohler Engine
Wanco Model: WGC3800
Features:
- 3,800 watts max. output
- Kohler Command PRO OHV engine
- Automatic voltage regulator (AVR)
- Large capacity steel fuel tank with fuel gauge
- 120V GFCI receptacles
- 240V twist-lock receptacle
- Hour meter
- Automatic low-oil shutdown
- Wheel kit with two flat-free tires and fold-down handles
- Heavy-duty frame
- Easy maintenance
- 3-year/2000-hour residential warranty
Technical Specifications:
PERFORMANCE
AC voltage
120/240 V
Max. output
3,800 W
Rated output
3,500 W
Max. current
31.7 A @ 120 V
15.8 A @ 240 V
Rated current
29.2 A @ 120 V
14.6 A @ 240 V
Frequency
60 Hz
Phase
Single
Current protection
GFCI
Dual-pole magnetic circuit breaker
ENGINE
Engine model
Kohler Command PRO CH270
Engine type
4-cycle OHV
Ignition system
Electronic
Starting system
Recoil
Output power
7 hp @ 3600 rpm
Displacement
208 cc
Noise level @ 23 ft. (7m)
72 dBA
Continuous run time
6.4 hr @ 100% load
Fuel capacity
4 gal. (15 L)
Fuel type
Gasoline
Standards compliance
EPA, CARB
RECEPTACLES
Two 120 Vac 20A GFCI duplex
One 240 Vac 30A twist-lock
PHYSICAL
Dimensions, L × W × H
27× 25× 26 in (67 × 64 × 66 cm) with wheel kit, handles down
Dry weight
137 lb (62 kg)
