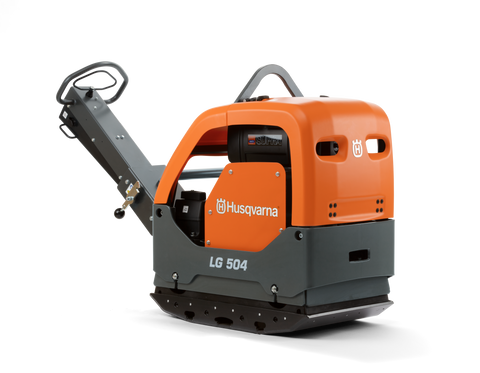

Husqvarna LG 504 Reversible Plate Compactor 28" | 967855522
Description
The Husqvarna LG 504 is a robust and reliable reversible plate compactor made for deep and medium-deep granular soil compaction. It excels in tight spaces where rollers can’t reach. Powered by a dependable Hatz 1D81Z diesel engine, it blends rugged performance with an ergonomic, service-friendly build—crafted to withstand heavy-duty use.
Features
-
Plates made to last: Built with ultra-durable Hardox 400 steel, the bottom plate resists wear and prevents rocks from getting stuck between the plate and frame.
-
Strong protection & easy transportation: The heavy-duty steel frame safeguards the engine and transmission; the integrated lifting eye ensures safe and easy movement across job sites.
-
Know when you’re done: A built-in compaction indicator alerts operators when optimum compaction is reached—saving time and improving efficiency.
-
Ergonomics and efficiency: A vibration-damped handle allows extended work periods without operator fatigue.
-
Easy operation: The forward/reverse lever and fixed handle grip simplify maneuvering across surfaces—no constant pushing or pulling necessary.
Specifications
| Specification | Details |
|---|---|
| Article Number | 967 85 55-22 (967855522) |
| Power Source | Diesel – Hatz 1D81Z engine |
| Weight | 1,093 lb |
| Plate Width Options | 27.56 in (700 mm) |
| Centrifugal Force | 14,612 lbf (~65 kN) |
| Vibration Frequency | Approximately 69 Hz |
| Additional Technical Data | 69 Hz, engine power ~9.2 kW |
Accessories
Recommended accessories for the Husqvarna LG 504 reversible plate compactor:
| Accessory | Description | Part Number |
|---|---|---|
|
Extension Plates
|
Adds 2 × 75 mm to the standard plate for broader compaction coverage. | 594758701 |
|
Extension Plates
|
Adds 2 × 150 mm to the standard plate for broader compaction coverage. | 594758801 |
