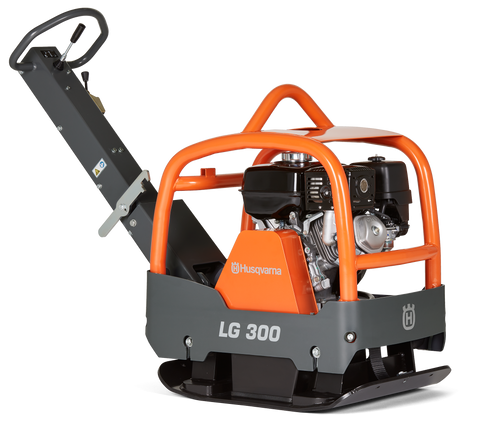

Husqvarna LG 300 Reversible Plate Compactor 20" | 967855301
Description
The Husqvarna LG 300 is a compact yet powerful reversible plate compactor designed for efficient compaction of small to medium-sized projects such as driveways, pathways, and trenches. With its responsive handling, it is especially effective on thinner macadam layers. Equipped with a reliable Honda GX270 petrol engine, the LG 300 provides excellent fuel efficiency and reduced emissions. Its Hardox 400 steel bottom plate ensures maximum durability and long service life, while operator comfort is enhanced through reduced vibration levels.
Features
-
Durable plate design – Hardox 400 steel bottom plate resists wear and prevents rock entrapment between the plate and frame.
-
Rugged frame and transportability – A strong steel frame protects the engine and transmission while a built-in lifting eye ensures safe and easy handling.
-
Smooth operation – A forward/reverse lever and fixed handle grip allow easy maneuvering across different surfaces without constant pushing or pulling.
-
Low vibration levels – Engineered for operator comfort with reduced handle vibration for improved safety and longer working periods.
Specifications
Specification | Details |
---|---|
Article number | 967 85 53-01 (967855301) |
Model | LG 300 (LG300) |
Power source | Petrol – Honda GX270 engine |
Plate width | 500 mm (19.7 in) |
Weight | 265 kg (584 lb) for 500 mm |
Centrifugal force | 40 kN (≈ 8,992 lbf) |
Optional diesel version | Hatz 1B30 diesel engine available |
Forward speed | Approx. 25 m/min (82 ft/min) |
Vibration frequency | Around 68 Hz |
Amplitude | 1.8–2.0 mm |
Sound power level (LWA) | 108 dB(A) |
Sound pressure at operator ear | 95 dB(A) |
Accessories
Recommended accessories for the Husqvarna LG 300 reversible plate compactor:
Accessory | Description | Part Number |
---|---|---|
Transport Wheel Kit |
Enables easy rolling of the compactor for convenient job‑site maneuverability. | 594830501 |
Documents
-
[Husqvarna LG 300 Part’s Manual] – Includes sections on operation, maintenance, safety, storage, technical data, and conformity details.
