Generac | MDG250DF4, Trailer Mounted Mobile 200kw Diesel Generator, w/ John Deere Engine

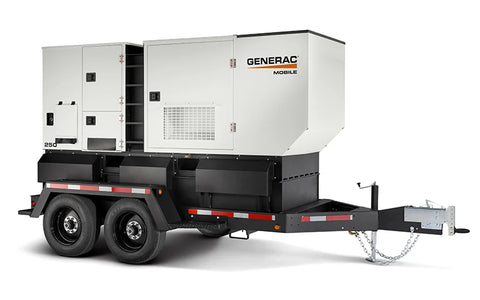

Generac Diesel 200kW Trailer Mounted Mobile Diesel Generator w/John Deere Engine

Generac Model: MDG250DF4

Features:

• Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
• A powerful processor with intuitive operation and real time operational data
• Programmable controller providing flexible application capabilities
• Distribution cables located away from controls for safer operation
• Fully treaded fenders for enhanced traction during service
• Wide doors for easy access during maintenance
• Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) aftertreatment components
• 500 hour service interval
• 250 kVA Prime Power
• 6.8 L turbocharged John Deere Final Tier 4 diesel engine
• Sound attenuated, rust-proof aluminum cabinet
• 2 year / 2000 hour warranty
• Single Phase - Three Phase switch
• Operational at 60 Hz
• Parallel-ready design accommodates up to 32 generators
• Cold weather options allow for optimum performance in extreme cold conditions


Standard Features:

ENGINE SYSTEM
• John Deere® 6068HFG06
• 6 Cylinder
• Variable-geometry Turbocharged (VGT) and Aftercooled
• 415 in³ (6.8 L) Displacement
• Power @ 1,800 rpm – hp (kW):
• Prime: 295 (220)
• Standby: 323 (241)
• Approved for use with Hydrotreated Vegetable Oil
(HVO) Fuels Compliant with ASTM D975 or EN
15940
• Paper Element Air Filter
• Electronic Isochronous Governing
• Variable Speed Fan
• One Spin-on Cartridge Oil Filter
• Oil Drain Extension
• One CCV System Filter
• One Fuel/Water Separator-Filter
• One Fuel Filter
• One 12 V, 950 CCA Wet Cell Battery
COOLING SYSTEM
• Capable of Operating at 108 °F (42 °C) Ambient (at
Prime)
• 50/50 Coolant (50% Ethylene Glycol)
• Coolant Drain Extension
FUEL SYSTEM
• Single Wall Fuel Tank
• Fuel Tank Capacity – gal (L):
• Total: 358 (1,355)
• Usable: 343 (1,298)
• Runtime @ 75% load: 33 hr
• DEF Tank Capacity – gal (L):
• Total: 28.5 (107.9)
• Total: 34.5 (130.6)
• Padlockable Fuel and DEF Tank Caps
CONTROL SYSTEM
• Deep Sea Electronics® 7310 MKII Controller
• 2-Position Linkboard
• 900 A Main Circuit Breaker (MCB), Manual, with
Shunt Trip
• Individual Convenience Receptacle Circuit Breakers
• Emergency Stop Switch
• Remote 2-wire Start/Stop Contacts
ALTERNATOR SYSTEM
• 60 Hz Engine-Driven Alternator
• Standard Alternator
• Brushless
• 4-pole
• 2/3 Pitch
• Class H Insulation
• Corrosion Protection
• Marathon Electric® PM500 AVR
• Shunt Excitation System
POWER DISTRIBUTION
• Connection Lugs
• Convenience Receptacles
• Two 120 V, 20 A, GFCI Duplex Receptacles
(NEMA 5-20R)
• Three 120/240 V, 50 A, 3 Pole, 4 Wire Twistlock Receptacles (CS6369)
ENCLOSURE
• Aluminum, Sound Attenuated Enclosure, Insulated
and Baffled
• UV and Fade Resistant, High Temperature Cured,
White Polyester Powder Paint
• Central Lifting Point
• Control Panel Lights
• Interior Lights
• Fully Lockable Enclosure
• Multilingual Operating and Safety Decals
• Document Holder with Owner's Manual — Includes
AC and DC Wiring Diagrams
TRAILER
• Hydraulic Surge Brakes
• 3 in. (76.2 mm) Pintle Ring, Adjustable
• Two 7,000 lb (3,175 kg) Axles
• 17.5 in. Tires, Tubeless, 10 ply
• Heavy Duty Trailer Jack
• Safety Chains with Spring Loaded Safety Hooks
• Transportation Tie Downs
• Plug Adapter, Round 7 Blade Adapter (SAE J2863)
• DOT Approved Tail, Side, Brake, and Directional
Lights
WARRANTY
• 2 Year Limited or 2,000 Hours
• Unlimited Hours Covered in First Year
