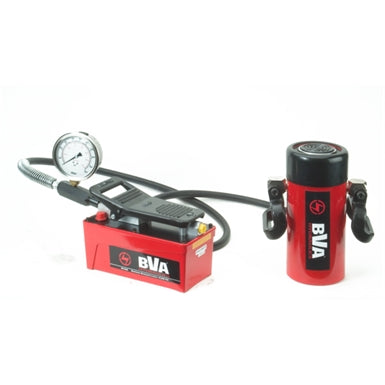

BVA | SA15-5506, 55 Ton 6.25" Stroke, General Purpose Air Pump & Cylinder Set
GENERAL PURPOSE AIR PUMP & CYLINDER SET
BVA Hydraulics
Model: SA15-5506
Features:
- SA15-5506 combo set includes all components need to power connect and monitor system pressure. It includes
- PA1500 - Air Pump with 91.5 cu. in usable oil
- H5506 - 55 Ton, 6.25" Stroke cylinder
- CS3814 - 1/4" internal diameter with 3/8" NPTF, 6 Foot Hydraulic Hose
- CH38M - 3/8" high flow coupler
- GW2514 - 2-1/2" face diameter liquid gauge with 1/4" NPTF
- CF3814 - 1/4" NPTF Gauge Fitting
| Cylinder Capacity (tons) |
Cylinder Model Number |
Stroke (in) |
Collapsed Height |
Pump Model |
| 55 | H5506 | 6.26 | 11.14 | PA1500 |
Documents:
Pump & Cylinder Sets Spec Sheet
