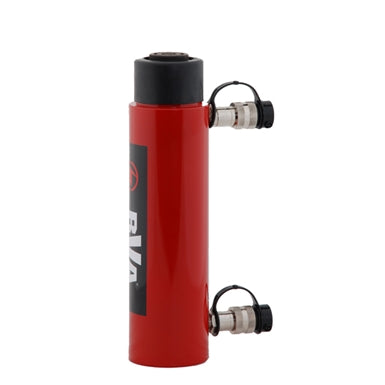

BVA | HD2506, 25 Ton 6" Stroke, Double Acting Cylinder
GENERAL PURPOSE DOUBLE ACTING CYLINDER
BVA Hydraulics
Model: HD2506
Features:
- Rod wiper seals out dirt & contamination
- High strength steel construction from gun drilled solid bar
- High flow 3/8” NPTF couplers
- One piece high grade alloy bearing for side load protection and long life
- Ideal for pushing and pulling
- Maximum working pressure: 10,000 psi / 700 bar
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Collapsed Height |
Oil Capacity (in³) Push |
Oil Capacity (in³) Pull |
Weight (Lbs) |
| 25 |
5.90 |
HD2506 | 10.56 | 30.35 |
15.81 |
24.8 |
Documents:
General Purpose Double Acting Cylinders Spec Sheet
Parts/Owner's Manual (10 thru 100 ton)
Parts/Owner's Manual (150 ton)
Parts/Owner's Manual (200 & 300 ton)
